PS Engineering PMA7000B Audio Panel - TSO For Certified Aircraft
Overview
|

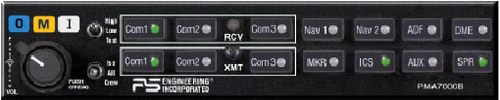

FAA TSO’d for Certified Aircraft Note: Plug and Play slide-in replacement for the PMA7000M-S, the PMA6000M-S, and the KMA28. Pin-Compatible with the KMA 24. The PMA7000 series audio panel not only provides a great set of capabilities, it also lends itself nicely for upgrading an existing Bendix/King KMA24 audio panel. The PMA7000B is KMA24 pin compatible, making the cost of the upgrading less expensive. None of the existing wires going to the KMA24 have to be disturb, only a new intercom wire harness has to be built, reducing the amount of installation time. With the renowned 6-place IntelliVox® automatic Voice Operated Relay (VOX) intercom system, adjusting a squelch circuit is a thing of the past. And with over 13 years of field experience, find out just how easy it is to forget you are even using an intercom, it just works! No more clipping or missed syllables. The PMA7000B provide 3-com capability with the option to easily convert Com 3 to a full duplex cellular telephone interface. It also has our pioneered "Split Mode". This allows the pilot to be on Com 1 while the copilot is on Com 2, freeing up the pilot to work with ATC while the copilot gets weather information or finds out just where the lowest fuel cost is on the field while still in the air. • IntelliVox® automatic VOX system with individually gated microphones • 6 - Place hi-fi stereo intercom with Soft Mute™ • 2 - music mute modes: Mute On and Mute Off • Built-in Marker Beacon Receiver • Cellular telephone input with dedicated On/Off hook switches for unprecedented flexibility • Split mode for dual audio panel capability • 2 hi-fidelity stereo music source inputs • 3 - Isolation modes - Pilot Isolate, All, and Crew • 4 - unswitched inputs • Selectable music muting for passengers • Selectable special intercom mode with "Alternate Intercom Mode" • RAM (Radio Active Mute) eliminates constant back ground noise from radio static For owners of KMA 24 units, the 7000B audio panel allows a reduced installation time as no existing connections need to be modified. After the existing connections are transferred to the new PMA7000B tray, the audio panel is complete! Only a standard intercom harness is then required from your avionics shop to complete your installation. The PMA 7000B is expandable to accommodate up to 12 places (10 passengers) with the addition of the 11606 IntelliPax. |
Specifications
- Approval Basis: C35d Class A, C50c-Class A
- Certification Documents: RTCA DO-160C, DO-178B, DO-143, DO-214
- Intercom: 6-place Stereo
- Transceivers: 3 - Com 1, Com 2, Com 3 (or Tel Duplex)
- Receiver Inputs: 5 - Nav 1, Nav 2,ADF,AUX, DME
- Marker Beacon: Internal
- Un-switched inputs: 4
- Power Required: 11-33 VDC, 1.5 A
- Power consumption (Speaker On): 600mA typical. 1A peak
- Power consumption (Speaker Off): 350 mA
- Speaker Output power: 3 W into 4Ω (14V) 10W into 4Ω (28V)
- Headphone Output Power: 50 mW into 150Ω w/o clipping
- Audio Frequency Response: ±3dB, 300Hz-6,000Hz
- Entertainment Frequency Response: ±3dB, 20Hz-18,000 Hz
- Weight: 1.5 lb.
- Dimensions: 6.25" W x 1.3" H x 6.8" deep behind instrument panel
- Environmental Conditions: DO-160C A1D1/CA(MN)XXXXXXBBBBTBKXX
- Temperature Range: -15 C to +55, with brief operation at +70 C
- Altitude: 50,000 feet, unpressurized
- Marker Receiver: 75 MHz crystal controlled receiver
- External Marker: Lights and MM sense output
Harness
- PS Engineering requires all units to be sold with custom harness in order to maintain factory warranty. Units sold without harness will receive no factory warranty. All PS Engineering orders with custom wire harness are build to order and require all questions to be filled out to process correctly. Any custom order not complete will cause delays. All custom harnesses are built to IPC-WHMA-A-620 standards via the manufacturer’s installation manual. Any additional comments or special requests may be noted in the Special Instructions field at checkout for review by the avionics team. For questions regarding custom harnesses for PS Engineering please email avionics@aircraftspruce.com or call us at 800-826-3160.
Documents
- Operating Manual (PDF)
- Installation Manual (PDF)
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The audio must is wired into the unit per the install manual. There are various configurations that will allow muting and selecting which group receives the music. Please see the brochure in the overview tab for more information.
Yes, rack and installation kit are included.
The external intercom would have to be removed. The PMA7000 is not plug-n-play with the KMA24 but rather, pin compatible.
He PMA 7000B has a 6 place intercom built in that can/will take the place of your existing intercom system (separate wiring harness will be required if replacing an existing KMA-24 or KMA-28).
The lower switch on the left side is a 3-position mode switch that allows the pilot to tailor the intercom function to best meet the current cockpit situation.
Per the manufacturer: The PMA7000B is plug and play with the original PMA7000M-S, the PMA6000M-S, and the KMA28.
No, it does not have that capability.
When adding this part number to your cart, a popup will appear for the option to add either a 2 place harness or a 4 place harness.
