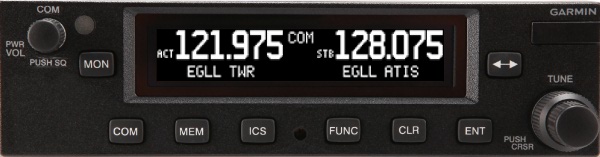

Garmin GTR 225 VHF COM Radio For Certified Aircraft
MFR Model# 010-02483-50
Overview
Important Notes:
These products have truly reinvented the stand-alone aviation COM radio with novel features like reverse database look-up and the COM monitor function, which bring new efficiency to cockpit radio management. Beyond that, these products demonstrate Garmin’s commitment to aviators worldwide, providing the solutions they need to meet the latest regulatory requirements in their regions, such as the recent SES mandate. The GTR 225 includes 10 watts of transmit power and 25 kHz frequency spacing. All products in the series have received the Federal Aviation Administration’s (FAA) Technical Standard Order (TSO) authorization. For the European 8.33 spacing version, order the Garmin GTR 225A or 225B. Worldwide Comm Database Enter the airport identifier to find the frequency (or frequencies) associated with that location. Uses GPS input (from compatible systems, sold separately) to determine locations for each of the 25 nearest airports, Flight Service Stations, ATC facilities, WX stations, etc. The series offers a variety of original features never seen before in a stand-alone COM radio. A unique frequency database makes it easy to find all the frequencies associated with a given airport or facility just by entering the location name or station ID. And when manually tuning a frequency, the reverse lookup function will automatically provide the navaid and/or airport identifier. Pilots can also find the nearest airport, area control center, flight service station, weather frequencies and VORs. All models also include a COM monitor function, which provides the utility of two receivers in one, allowing the pilot to listen to transmissions like ATIS without leaving the active ATC frequency, as one example. The GTR and GNC series automatically store the 20 most recently called frequencies. Plus, the radios allow for storage of up to 15 favorite frequencies such as the pilot’s home airport or other frequently visited destinations. A familiar flip-flop feature allows channels to be entered in a standby window, and then activated with a press of a button. All models also include a built-in, voice activated two-place intercom making it a great solution for a two seat aircraft without an audio panel. A built-in timer can assist with approaches, holds and other assigned maneuvers. |
Features
- Flight Service Stations, ATC facilities, WX stations, etc.
- Active and standby flip-flop frequencies
- One-touch 121.5 emergency channel tuning
- Comm frequency monitor function (listens to standby while monitoring the active)
- Recall of frequency from database by facility name and type
- Database reverse lookup of frequencies providing station ID andfrequency use (TWR, ATIS, etc.)
- Volume control bar graph display
- Alphanumeric display of frequency types (ATIS, GRND, TWR, etc.)
- High-visibility alphanumeric LCD display
- Transmit status indicator
- Backlit keypad controls
- Automatic and manual, pilot-selectable display intensity control
- Built-in, two-place voice activated intercom
- Frequency memory and recall
- Stores/recalls 15 user defined frequencies
- Stores/recalls previous 20 frequencies used
- Squelch test function
- Stuck mic time-out
- 12 W audio amplifier
Specifications
Performance:- Communication channels: 760 with 25 kHz spacing; 2280 channels with 8.33 kHz spacing
- Frequency range: 118.000 to 136.992 MHz (with 8.33 kHz spacing
- Transmit power: 10 or 16 W (optional)
- Input voltage range: 9 to 33 VDC
- Operating temperature range: -20 to +55 C
- Certifications: TSO C169a (transmitting and receiving), TSO C128a (stuck mic)
- Dimensions: 1.65”H x 6.25”W x 10.4”D (4.19 x 15.88 x 26.42 cm)
- Weight: 2.30 lbs (1.04 kg) unit only; 3.06 lbs (1.38 kg) with mounting rack
- Depth: 11.23 inches (28.52 cm) behind panel, including mounting rack and connectors
Unit Comparison
| Unit | Com | Nav | 8.33kHz | Transmit Power |
|---|---|---|---|---|
| GTR 225 | X | 10W | ||
| GTR 225A | X | X | 10W | |
| GTR 225B | X | X | 16W |
Videos
Reviews
it works great.
Good job as usual. No problems.
Nice upgrade coming from Narco Mark 12D. I added a PS 5000 for the intercom and music inputs. I dont use a Garmin GPS, so many of the features for local frequency tuning cant be used which is okay. One thing I need is a s/w update. The version shipped with the radio does not support sidetone volume adjustment. I understand I need version 2.20 comm s/w. I have 2.14.
Lots of features for the price. One free frequency install. You can spell in the airport ID KDFW and it will show all the freq with their name the select it and move it from standby to active. Unfortunately if you want to go from ground to tower, you have to re enter the airport ID again to get it.
Correction: The RS 232 ground connection is pin 31
The radio is what you would expect from Garmin. The supplied harness was ok but the RS232 ground pin 34 was not included. It's an easy fix but necessary if you want to use the GPS data feature.
GARMIN GTR 225 AUX Audio Source will not automatically mute the music [AUX IN](if using a MP3 Player) when ATC or other aircraft transmit over the air. also the Music don't mute when you talk using the two place intercom configuration. (you will need to add a {mute/off/on} Switch to mute the AUX input. Yes it work well with a Garmin 496. You will need to add 6 wires to make it work with two place & AUX in.
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, the GTR 225 comes with a rack and a connector kit in which we wire a harness. It does not come with an antenna as you can select the type of com antenna you want for your aircraft (top or bottom mount).
The difference is the wattage output as the A model is 10W and the B model is 16W. The A & B model have 8.33 channel spacing where the straight 225 is 25 channel spacing.
The Garmin GTR and GNC Comm have different rack dimensions and are not slide-in replacements for the SL 30 or SL 40s.
The Garmin 496 can connect to the GTR 225 with the Garmin Power Data Cable part number: 11-02694.
Both would be accomplished by pressing MENU, using the large knob to select then the appropriate field and using the small knob to adjust the volume.
Yes there is a 2 place intercom integrated with the harness and radio. You will need to order the option with the custom harness (part # 10-05721).
Yes, the GTR 225 has a cooling fan intergrated into the chasis.
Yes, it is pin 27 on the GTR 225 for the com flip-flop.
The GTR 225 can interface with the Aera 660 for the comm drop feature
The GTR 225 pulls from the database of the Aera 660 so it will be USA only unless you change the mapping database online after receiving it.
