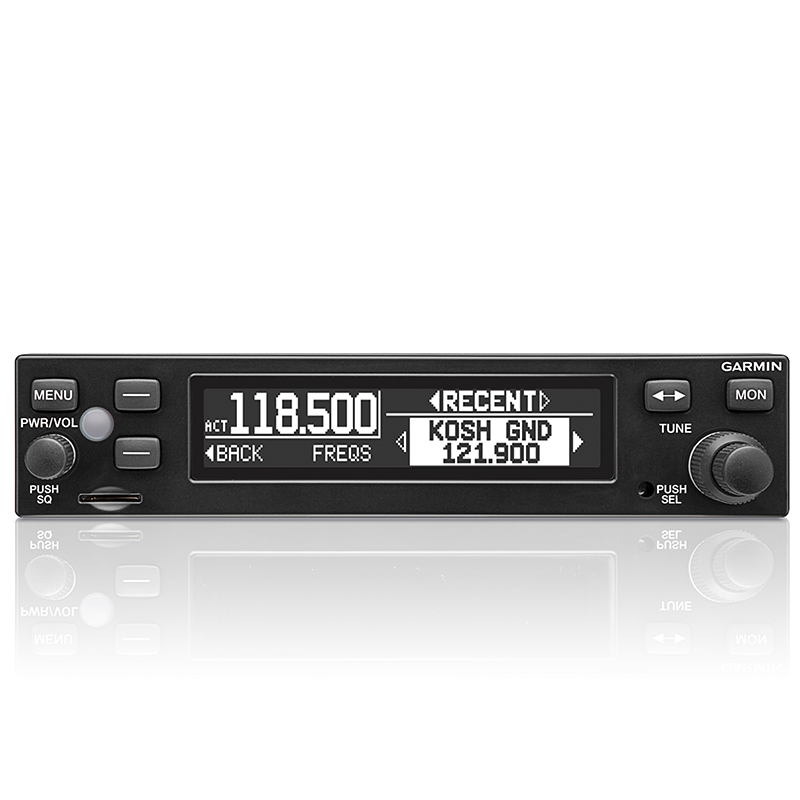

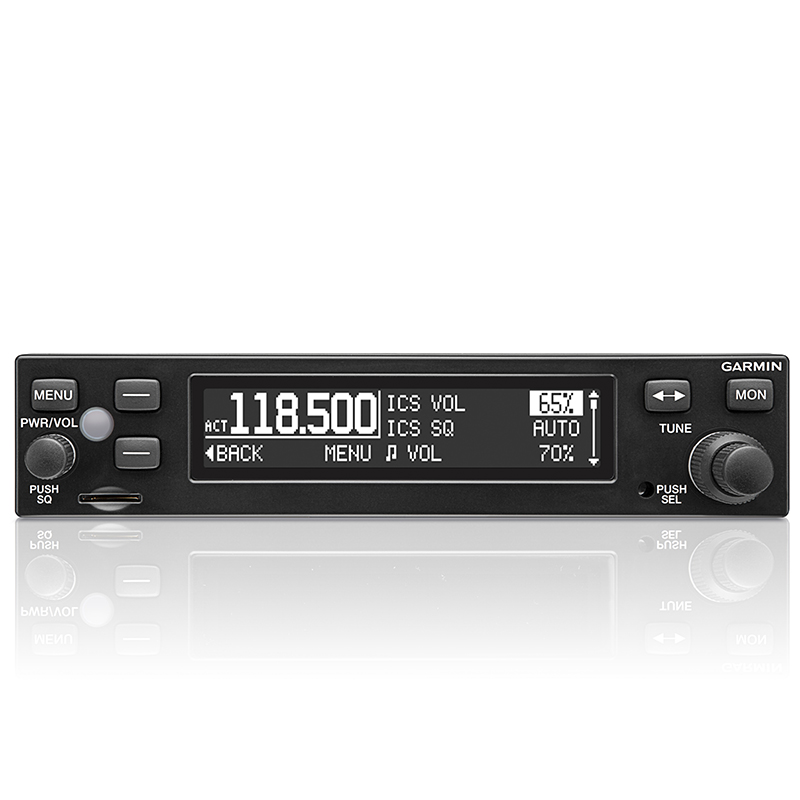

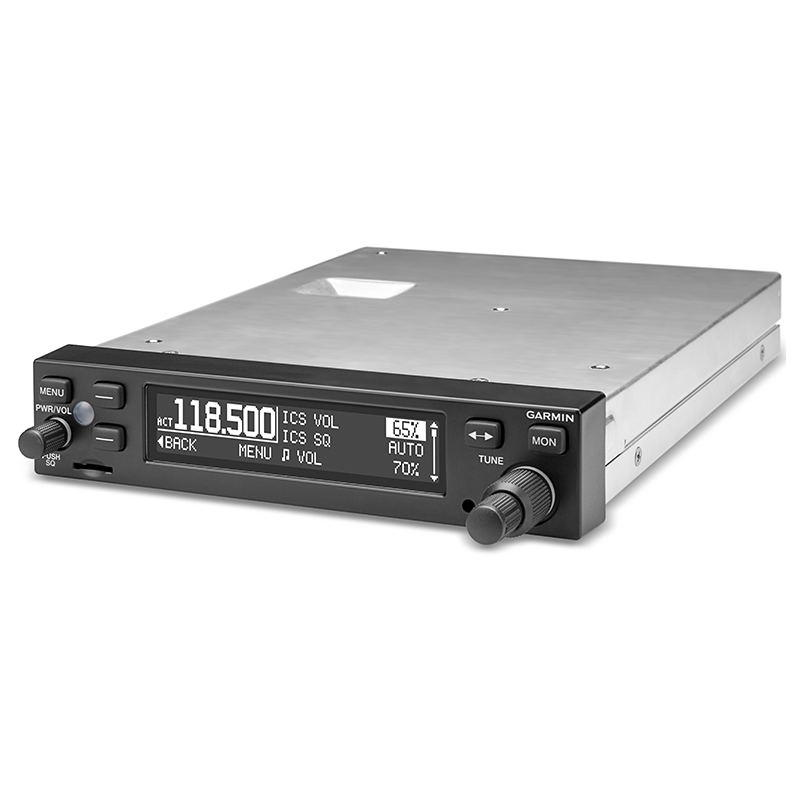

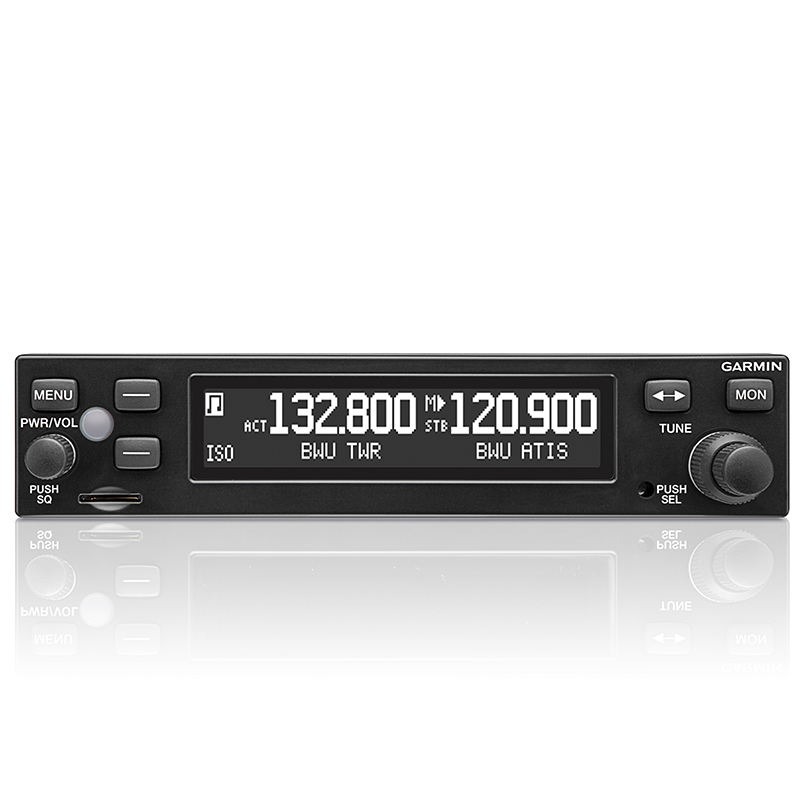

Garmin GTR 200 Panel Mount COM Radio
Overview
Important Notes:
The GTR 200 is the first to integrate advanced audio panel features like a two place auto-squelch stereo intercom, which senses the amount of sound in the cockpit and automatically adjusts the mic squelch for effortless intercom use regardless of the cockpit noise level. With 3D audio, the GTR 200 makes it easy to discern between the active and monitored standby frequencies as well as the other passengers. The radio’s best-in-class standby monitor is enhanced with patent-pending digital processing, so it seems as though there are two radios in one. With its advanced integration with the Garmin G3X glass flight display, or other compatible Garmin portable products, the GTR 200 is able to receive a frequency and identifier in the comm’s standby position directly from the G3X’s waypoint page, allowing the pilot to ensure accurate transfer and reduce workload. This same integration, automatically, and without the need for a database, displays the airport identifier and type on the GTR 200, like “KOSH ATIS” should the pilot manually tune the frequency. And further, these compatible Garmin portable products, constantly stream the flight plan and nearest airports to the GTR 200 for quick access and retrieval of any airport frequency with a single push of the knob. Accessing these features on the GTR 200 is extremely easy and intuitive, with a sunlight readable display and built-in shortcuts including configurable soft keys to help reduce cockpit workload (for example, configuring one-touch access to music mute or pilot isolate). Optionally installed switches, typically on the flight controls, allow pilots to keep their hands on the controls while performing functions like swapping active and standby frequencies. And for easy retrieval of the most commonly used frequencies, the GTR 200 stores up to 20 pilot-defined frequencies as well as the 20 most recent frequencies used for easy retrieval. The radios are easy to install, with a standard density 37 pin connector and they support both 14 and 28 volt aircraft and offer 25 kHz channel spacing. List of compatabile Garmin Products:
|
Features
- Active and standby flip-flop frequencies with location and type identifiers
- One-touch 121.5 emergency channel tuning
- Comm frequency monitor function (listens to standby while monitoring the active)
- 3D Audio separates active and standby frequencies as well as the intercom in headset
- Auto-squelch listens to the natural noise in the cockpit and automatically adjusts the squelch level
- Automatic display of the airport identifier and type after tuning a frequency from the user defined presets or a frequency list transferred from a compatible portable GPS or G3X system
- 10 W transmit power and 25 kHz spacing
- Large, sunlight readable display
- Total product footprint is 1.35” tall by 6.25” wide. Has only a 9.4” behind-the-panel depth including connectors (8” without connectors).
- Only 1.34 lbs. (1.91 lbs. with rack and connectors)
- Optionally installed switches allow remote control of frequency flip-flop and/or pilot/co-pilot squelch
- Volume control bar graph display
- High-visibility alphanumeric LCD display
- Built-in photocell for backlight control, or support for external 14V/28V lighting bus
- Backlit keypad controls
- Transmit status indicator
- Receive status indicators for both active and standby (when monitored)
- Monitor function enabled indicator
- Built-in, 2-place stereo voice activated intercom
- 2 mono and 1 stereo audio inputs for external systems alerts and music
- Stores/recalls 20 user defined frequencies with labels
- Stores/recalls previous 20 frequencies used
- Squelch test function
- Extensive installation assistance screens to make it easy to set up external audio sources to the correct level
- Stuck mic time-out; returns to receive mode to prevent frequency congestion
- 2 front panel-mounted, user-defined softkeys to assign to frequently used functions such as music on/off and pilot isolate. Can also be assigned to PTT to be used in case the installed PTT button or wiring fails.
- MicroSD™ card slot for easy software updates
- Mono/stereo headset detection
- Easy installation with a standard density 37-pin connector
- 14/28 V power
- When Interfaced with G3X and compatible Garmin aviation portables:
- Automatic transfer of airport frequency groups (ATIS, Ground, Tower, UNICOM, Departure, etc.) for each airport in the flight plan plus nearby airports as you fly. Each transferred frequency includes the location and type identifier for display on the radio after tuning. No GTR 200 database is required for this feature. 1-button access to airports in the flight plan and those near the aircraft
Specifications
Physical Characteristics- Bezel height: 1.35" (34.29 mm)
- Bezel width: 6.25" (158.8 mm)
- Rack height (dimple-to-dimple): 1.375" (34.93 mm)
- Rack width: 6.30" (160.02 mm)
- Depth behind panel with connectors (measured from face of aircraft panel to rear of connector backshells): 9.39" (238.51 mm)
- GTR 200 weight (unit only): 1.34 lbs (0.61 kg)
- GTR 200 weight (installed with rack and connectors): 1.91 lbs (0.87 kg)
- Operating temperature range: -20° C to +55° C
- Humidity: 95 percent non-condensing
- Altitude range: -1,500 ft to 55,000 ft
- Current drawą at 14 VDC:
- 0.6 A, typical when receiving
- 3.0 A, typical when transmitting
- 7.5 A maxiumum, 90 percent modulated into 3.1 VSWR and 11 V power input voltage
- Current drawą at 28 VDC:
- 0.3 A, typical when receiving
- 1.40 A, typical when transmitting
- 3.75 A maxiumum, 90 percent modulated into 3.1 VSWR and 22 V power input voltage
- Display size (WxH): 3.4" (88.0 mm) x 0.843" (21.4 mm)
- Active area (WxH): 2.95" (74.98 mm) x 0.486" (12.36 mm)
- Resolution: 200 x 33 pixels
- Viewing angle: left 45°; right 45°; up 10°; down 30°
- Microphone input: Two inputs, standard carbon or dynamic mic with integrated preamp. The GTR 200 provides a 150 Ω AC input impedance and supplies the microphone with an 11 V bias through 470 Ω +/- 5 percent
- Modulation capability: 85 percent with 250 to 2500 mVRMS microphone input at 1000 Hz
- Modulation: AM double sided emission designator, 6K00A3E (118-136.975 MHz)
- Frequency range: 118.000 to 136.975 MHz, 25 kHz channel spacing
- Frequency tolerance: +/-5 ppm from -20°C to +55°C
- Output power: 10 W carrier minimum
- Duty cycle: 20 percent
- Carrier noise level: At least 35 dB (SNR)
- Stuck mic time-out: 35 seconds time-out, reverts to receive
- Demodulated audio distortion: Less than 25 percent distortion when the transmitter is at 85 percent modulation at 350 to 2500 Hz
- Frequency range: 118.000 to 136.975 MHz, 25 kHz channel spacing
- Headset audio output: 60 mW minimum into a 150 Ω load
- Audio response: Less than 6 dB of variation between 350 and 2500 Hz
- Audio distortion: Less than 25 percent at rated output power
- Sensitivity: SINAD greater than 6 dB when the RF level is -107 dBm with 30 percent modulation
- Squelch: Automatic squelch with manual override
Harness
11-12085 – Stock GTR 200 with 4 foot harness to audio panel:
The standard 4 foot harness to audio panel includes the following connections:
- Power and ground
- GTR 200 com lead to audio panel audio
Below is a listing of optional features for the GTR 200 that are included but not pinned into this connector:
- Backlight dimmer
- Discrete 1 & 2
- Transmit interlock
- RS-232
11-12003 – Stock GTR 200 with 4 foot harness with pilot & co-pilot jacks attached:
The standard 4 foot harness to jacks includes the following connections:
- Power and ground
- Pilot jacks attached
- Co-pilot jacks attached
- PTT attached to jacks
- Music jack 1 attached
Below is a listing of optional features for the GTR 200 that are included but not pinned into this connector:
- Backlight dimmer
- Discrete 1 & 2
- Transmit interlock
- RS-232
- Aux audio
Videos
Reviews
Great radio
Verified Purchase
GARMIN GTR 200 COM RADIO 10 WATT 25 KHZ SPACING NON TSO
I ordered this to replace a 14 year old Garmin SL40 that was functioning as Com 2 but had fading reception and an inop volume control. The only connections the GTR200 needed were the external antenna, power, ground, and five wires going to the audio panel. Fabricating a new wiring harness was made relatively simple by the fact that during the original build, I had positioned in-line connectors (DB9 or DB25 computer connectors, to be exact) in between all avionics in the stack and all other units. So it was only necessary to terminate the new wiring in a DB9 connector that matched the pinouts of the original wiring. A bonus of having the new unit is that it has a 10 watt transmitter vs. 8 watts for the old one, and a much more informative digital display e.g., when monitoring two frequencies at once, it shows which one is receiving a transmission at the moment. A minor annoyance was that Garmin radio trays apparently now are just a smidge wider than they used to be. The standard 6.25 inch width has now become 6.30” – just enough that new trays won’t slide easily into stacks of older radios without some creativity with a flat file to make the opening a bit wider. Luckily the height of the GTR200 is the same as the SL40 (even though the Garmin specs say it isn’t!) so neither the GNS480 navigator above the radio or the GTX330ES transponder below it had to be moved. Oh, and the new unit works great. : )
Verified Purchase
GARMIN GTR 200 COM RADIO 10 WATT 25 KHZ SPACING NON TSO
Works alright
Verified Purchase
GARMIN GTR 200 COM RADIO 10 WATT 25 KHZ SPACING NON TSO
Garmin 200 is great radio. I got the harness with the jacks. The harness is absolute jewelry. Every wire labeled, everything professionally wired. You won’t get a better harness and you won’t find any shop that can do it cheaper.
I have purchased and installed three of these units in different aircraft and I absolutely love them. Be sure and buy the harness from aircraft Spruce and you will not be disappointed. All the wires are clearly labeled and very easy to install probably only takes me 30 minutes to install one now.
Quick service. Thank you
I deal with Spruce on a regular basis and always find the people and the service to be exceptional.
excellent service
Gamin logic, Garmin build quality (though actually in Thailand). I ordered mine with the made up 4ft harness with headphone jacks. This was a replacement radio for an MGL Transceiver. Total install time in a Sonex to remove old radio and harness, alter panel, fabricate a holder for the tray, install and wire in new harness - 8 hours. Including audio interfaces. Did not interface with EFIS data but did interface with EFIS audio alerts. (would have added about another hour to wire the data - but the EFIS may not remain in the aircraft long so....). Would have been many hours longer if I had made my own harness. Harness worth the extra $$ Installation manual is emailed to you by Aircraft Spruce after verified purchase. Configuration time after install - about 30 mins to run through it and make your choices. In service - people hear me fine, the radio proved much more sensitive on my existing antenna - leading me to believe that other brand was OK - but had not been doing me any favors. 3D setup is a nice touch. Intercom is stereo. For $$ - better featured than the other brand for slightly less $$ Penalty is weight. About 1lb heavier once installed. Ill take the 1lb for the added features and sensitivity. Sound quality of interface to a Gamin VIRB camera using the VIRB Audio jack adapter - excellent. If you are a builder/comfortable doing wiring - this install is quite straightforward (again - the pre-made harness is a huge help). The only bit you probably need outside assistance with is the output test - I had to borrow equipment for that. Would definitely buy again.
Good service
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
No, the GTR 200 is not a direct replacement for the SL 40 as it requires a new installation.
Total product footprint is 1.35” tall by 6.25” wide. Has only a 9.4” behind-the-panel depth including connectors (8” without connectors), 1.34 lbs (1.91 lbs. with rack and connectors).
Yes, Garmin still allows this feature in the GTR 200.
The Garmin GTR 200 can be used as the com radio for a Skyview system but does not connect to the Skyview to show com frequencies on the Skyview display.
No, it will not fit as you will have to do a new installation with the GTR 200.
No, this will not side into the Narco 810. Also note the GTR 200 is not a certified radio and is intended for experimental aircraft only.
There is not a 3.5mm jack on the unit as the music source is from the back of the unit and you attach the 3.5mm jack to it.
Yes, the date out line from the Aera will go to pin 24 on the GTR 200 (RS 232 In).
Per Garmin: Yes, it will.
The Garmin GTR 200 Panel mount Radio Standard Kit comes with Rack, Connector Kit, and Back plate. The Standard Kit + Harness" model includes all the same with the addition of the harness.
