Curtis Pipe Thread Drain Valves

37 Reviews 7 Answered Questions

From $15.50 to $41.85

Model No.	Thread Size	Installed Length	Material	Part No.	Price	Buy

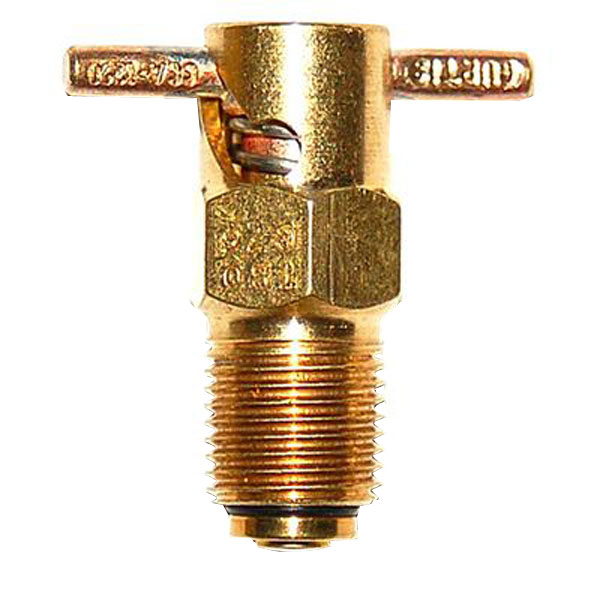

CCA-1250	1/8" NPT	.790"	B	05-04045	$15.50	Quantity

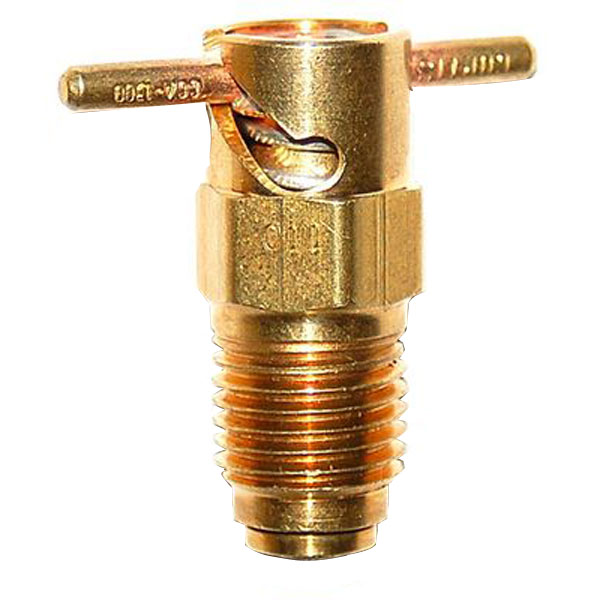

CCA-1300	1/4" NPT	.965"	B	05-04046	$16.50	Quantity

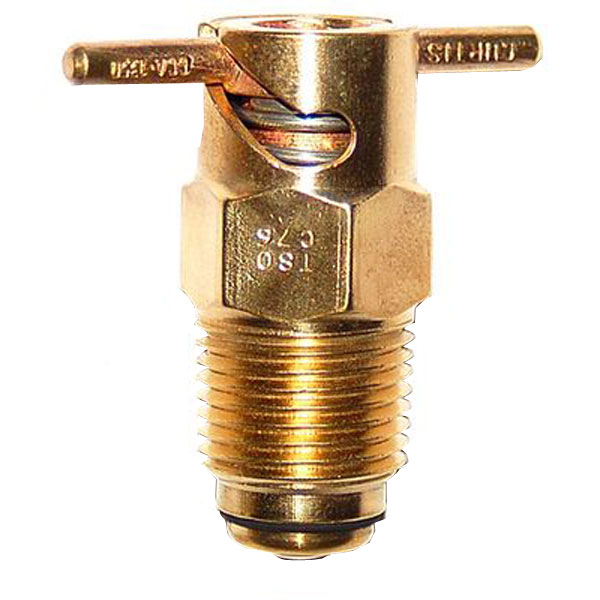

CCA-1350	3/8" NPT	1.08"	B	05-04047	$21.50	Quantity

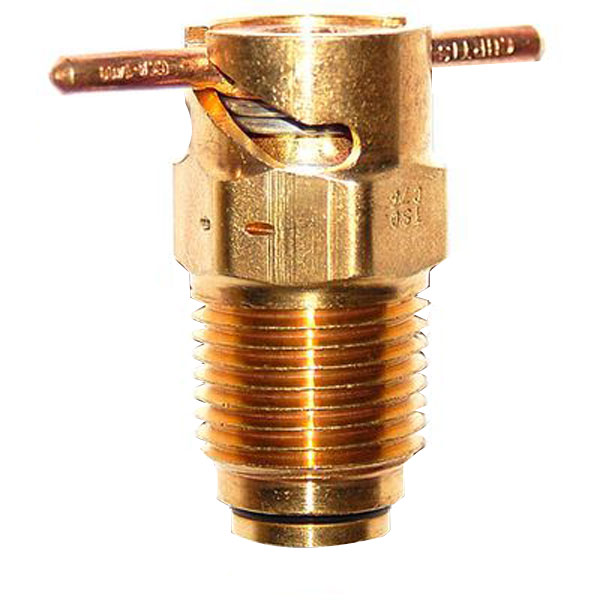

CCA-1400	1/2" NPT	1.125"	B	05-03060	$33.50	Quantity

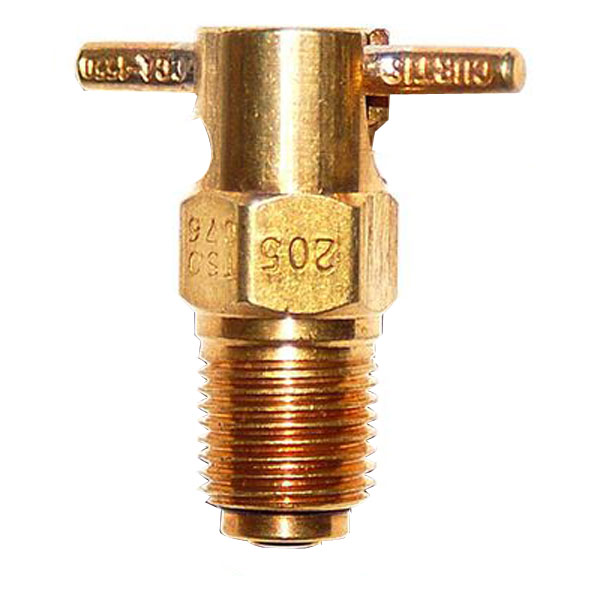

CCA-1550	1/8" NPT	.790"	B	05-01869	$15.50	Quantity

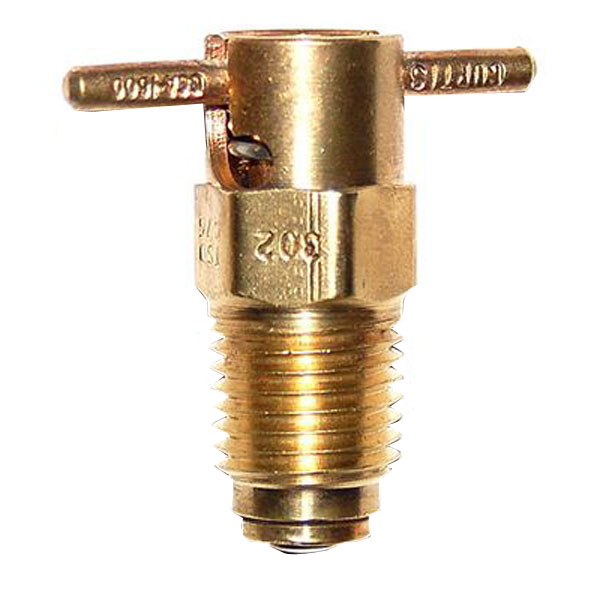

CCA-1600	1/4" NPT	.945"	B	05-01870	$15.85	Quantity

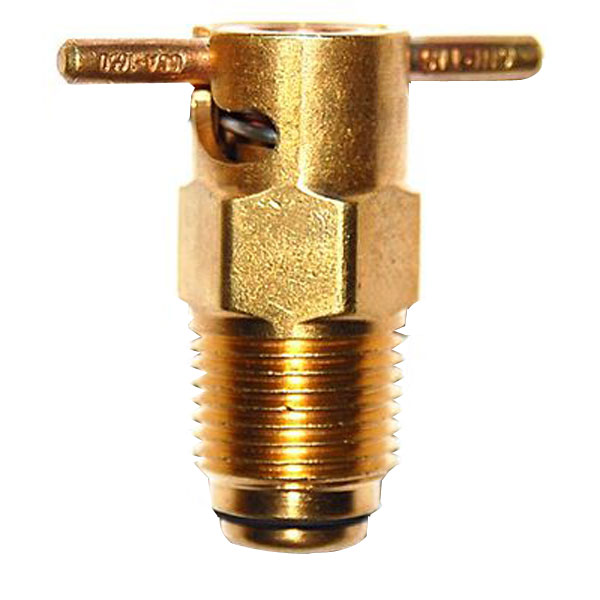

CCA-1650	3/8" NPT	1.08"	B	05-01871	$20.95	Quantity

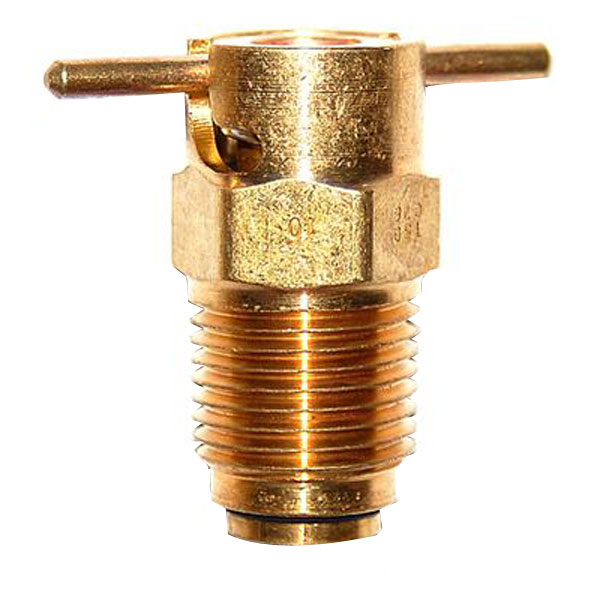

CCA-1700	1/2" NPT	1.125"	B	05-01872	$33.50	Quantity

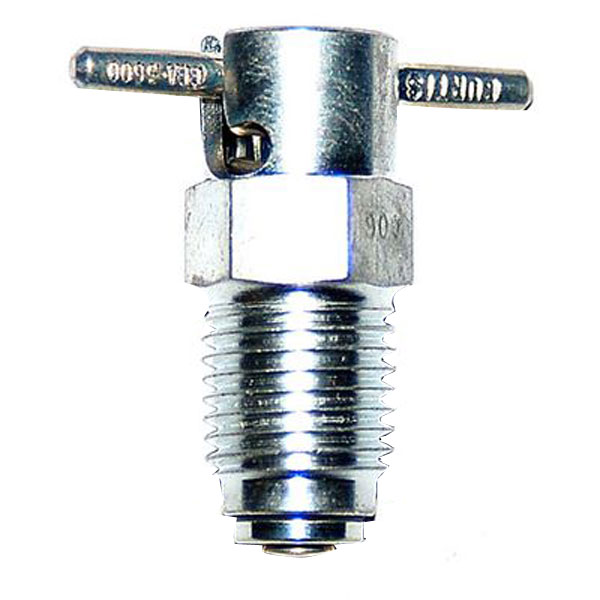

CCA-3600	1/4" NPT	.965"	BC	05-04048	$20.60	Quantity

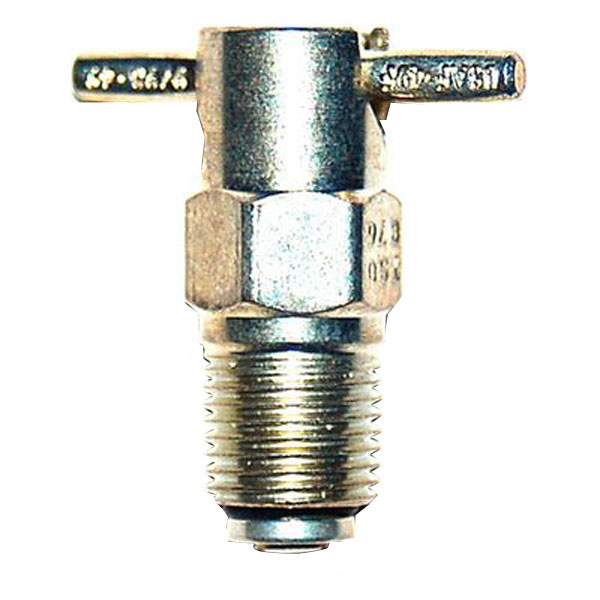

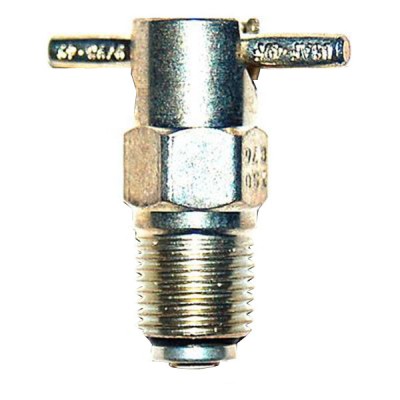

CCA-36150	1/8" NPT	.790"	BC	05-03654	$21.65	Quantity

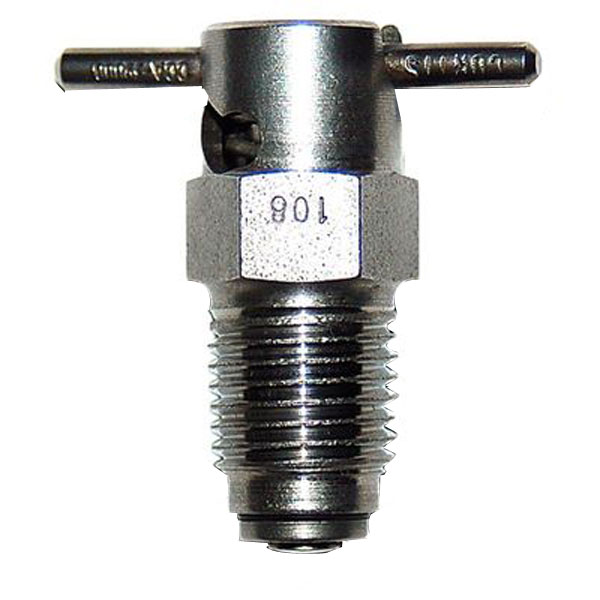

CCA-39000	1/4" NPT	.925"	SS	05-03655	$41.85	Quantity

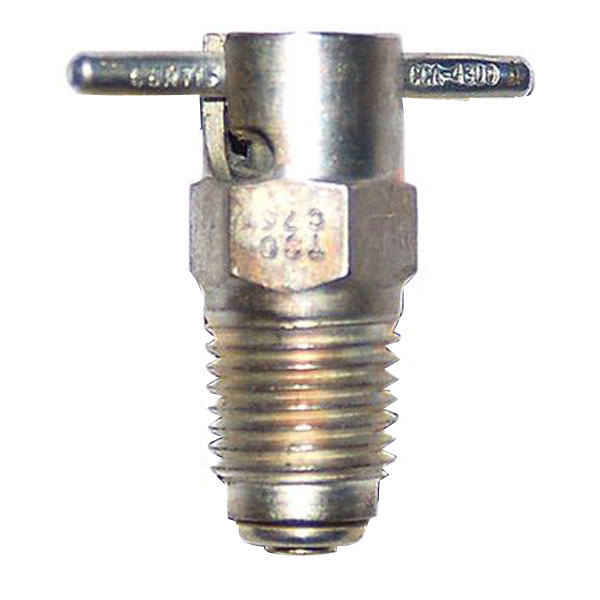

CCA-4800	1/4" NPT	.945"	BC	05-04049	$24.85	Quantity

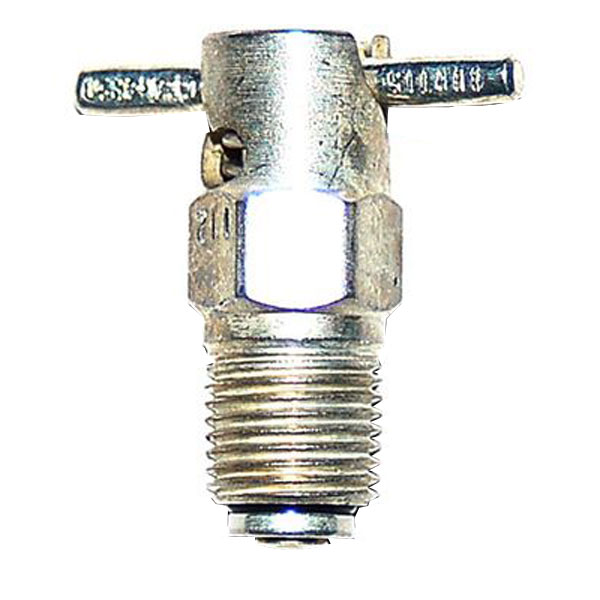

CCA-4850	1/8" NPT	.790"	BC	05-00686	$21.50	Quantity

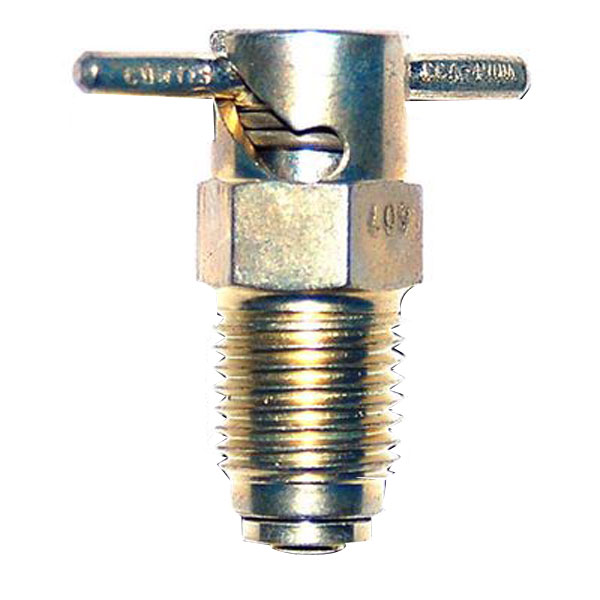

CCA-4900	1/4" NPT	0.945"	BC	05-11718	$23.90	Quantity

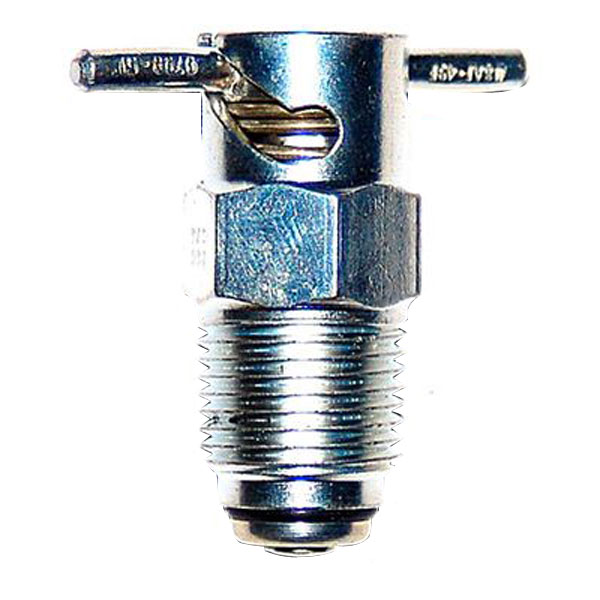

CCA-4950	3/8" NPT	1.08"	BC	05-04050	$24.80	Quantity

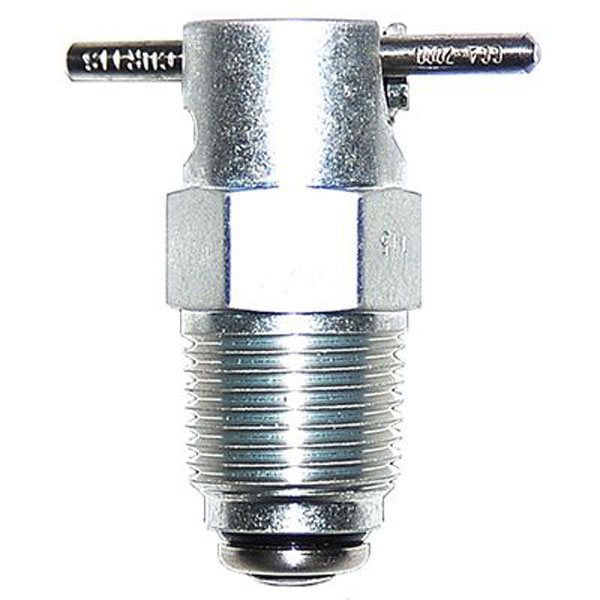

CCA-7000	3/8" NPT	1.08"	AA	05-15401	$26.50	Quantity
CCA-7450	1/8" NPT	.790"	BC	05-03652	$21.50	Quantity

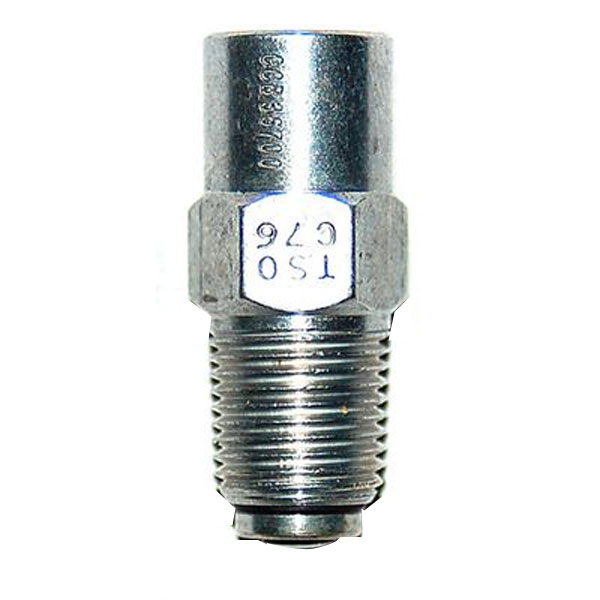

CCB-36700	1/8" NPT	.790"	BC	05-03659	$15.85	Quantity

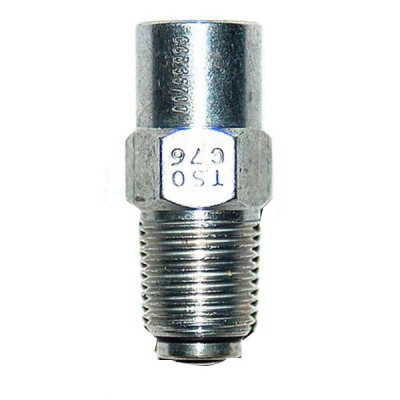

CCB-36750	1/8" NPT	.725"	SS	05-03660	$34.85	Quantity

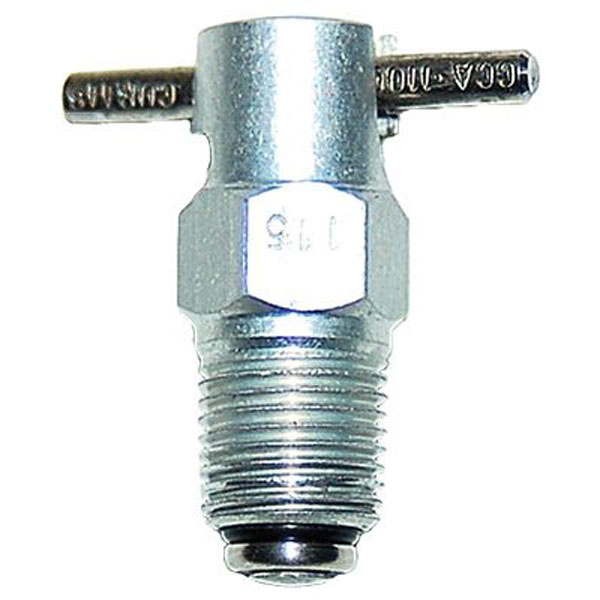

CCA-1100 For LSA with replaceable Viton O’Rings Compatible with Diesel and Bio fuels	1/8" NPT	.790"	A	05-12914	$23.75	Quantity
CCA-1150 TSO-C76 with replaceable Nitrile O’Rings Compatible with Jet fuel and 100LL fuel	1/8" NPT	.790"	A	05-12915	$23.75	Quantity

Subtotal $0.00

Add to Wishlist

JUMP TO

JUMP TO
Overview
Documents
Reviews
Q&A
View in Catalog

Overview

NOTE: Thread size column lists pipe thread (NPT), not measured thread.

Quick opening brass drain valve for aircraft oil or fuel systems. A slight twist opens valve. No safety wire needed in closed position. FAA approved. TSO-C76 Approved.

Note: FAA Approval applies to fuel applications only. NOT FAA Approved for oil applications.

Curtis Superior Valve is experienced in valve design and can help solve your valve problems. In most cases a standard Curtis Superior Valve will do the job. Or possibly a slight modification of a production unit will answer a specific problem. We will be glad to give you any assistance you may require with your Quick Drain Valve application.

MAINTENANCE / CMM

Curtis Superior Valves are designed for installation in a standard NPT port for NPT threaded valves or an AND-10050 stlye port for UNF threaded valves. Use a sealant on NPT threaded valves or a fuel resistant o-ring of the proper size for UNF threaded valves. Refer to aircraft manufacturers torque specifications for the aircraft in which it is being used. Curtis Superior Valves require no special maintenance. Keep them reasonably clean and replace according to the prescribed synthetic rubber maintenance schedule for the aircraft in which they are used or 10 year usable life per Curtis Superior Valve whichever occurs first. Curtis Superior Valves cannot be OVERHAULED. Replace the entire valve per the maintenance schedule of the aircraft in which it is used or usable life per Curtis Superior Valve should it begin to leak.

OVERHAUL

Due to the low replacement cost of Curtis Quick Drain Valves versus the cost of replacement seals, breakage of seals in overhaul installations and labor costs, it is not recommended they be overhauled. Replace the entire valve in accordance with the instructions in MAINTENANCE above or should they begin to leak.

MATERIAL

A	Aluminum
AA	Anodized Aluminum
B	Brass
BC	Brass Cadmium Plated
SS	Stainless Steel

Use Curtis Fuel Sampling Cup P/N CCA-39680 (05-17300) for Fuel Testing

Field Replaceable O'Rings TSO C76 approval from the FAA

Valve Number	Valve Thread Spec.
CCA-1800	1/8 ANPT
CCA-1900	1/4 ANPT
CCA-2000	3/8-24 UNF-3A
CCA-2100	7/16-20 UNF-3A

FUEL VALVE & MANUFACTURERS CROSS REFERENCE

Curtis Part Number	Auto Valve Part Number	Saf-Air Part Number	Curtis Stem Seal O'Ring	Mounting O'Ring
CCA-1800	BJ1000AS1MY	CAV-110	MS29513-007	None Req.
CCA-1900	BJ1000AS1MX	CAV-160	MS29513-007	None Req.
CCA-2000	1100B52Z	CAV-180	MS29513-007	MS29513-011
CCA-2100	1100B52Z-G	CAV-170	MS29513-007	MS29513-012

Documents

Curtis Drain Valves Wall Chart (PDF)
Curtis Oil Drain Valves Application by Engine (PDF)
Curtis Valve Application by Aircraft (PDF)
Fuel & Oil Drain Valve Specifications (PDF)

Customers Also Viewed
Frequently Purchased With
Related Items

Reviews

Submit a Review

Juan G

Verified Purchase

CURTIS DRAIN VALVES CCA-1600

January 22, 2022

Excellent and fast. The valve was the correct size and stopped my fuel Leak.

Francis B

Verified Purchase

CCA-4850 CURTIS DRAIN VALVE

December 27, 2021

Worked perfectly and is very good quality.

Scott C

Verified Purchase

CURTIS DRAIN VALVES CCA-1700

December 14, 2021

Works well

Andrew B

Verified Purchase

CURTIS DRAIN VALVES CCA-1600

November 20, 2021

The drain fit the our Piper Archer perfectly. Thanks

Christopher S

Verified Purchase

CURTIS DRAIN VALVES CCA-1550

November 13, 2021

Jim M

Verified Purchase

CURTIS DRAIN VALVES CCA-1550

November 6, 2021

Jose J

Verified Purchase

CURTIS DRAIN VALVES CCA-1550

November 4, 2021

It open and closes. Whats to review?

Adam C

Verified Purchase

CURTIS DRAIN VALVES CCA-1550

November 2, 2021

Very good exactly as expected

Eric B

Verified Purchase

CURTIS DRAIN VALVES CCA-1550

October 29, 2021

Perfect for what I needed.

Mario A

Verified Purchase

CURTIS DRAIN VALVE CCA-1300

October 23, 2021

Donald C

Verified Purchase

CURTIS DRAIN VALVE CCA-1300

October 19, 2021

Tom A

Verified Purchase

CURTIS DRAIN VALVES CCA-1600

October 12, 2021

Exact fit!

C. R

Verified Purchase

CURTIS DRAIN VALVES CCA-1550

October 8, 2021

Bob Q

Verified Purchase

CURTIS DRAIN VALVES CCA-1550

October 8, 2021

Fits perfect..thanks

Bob Q

Verified Purchase

CURTIS DRAIN VALVE CCA-1300

October 6, 2021

Bruce P

Verified Purchase

CURTIS VALVE CCA-1150

September 25, 2021

Right part, in stock, and very fast delivery. Thanks

Garry S

Verified Purchase

CURTIS DRAIN VALVES CCA-1550

September 4, 2021

Nice to not have fuel leaking on to the wheel pants of my Warrior.

Kent H

Verified Purchase

CURTIS DRAIN VALVES CCA-1550

July 28, 2021

It was literally just what I needed. Fit well, worked perfectly. Thank you.

Robert J

Verified Purchase

CURTIS DRAIN VALVES CCA-1550

June 16, 2021

Replacement fuel drain for Wako r n f

Chip B

Verified Purchase

CURTIS DRAIN VALVE CCA-1300

May 29, 2021

Jack M

Verified Purchase

CURTIS DRAIN VALVES CCA-1550

May 25, 2021

Perfect fit, easy install on our 1966 Cherokee Six

Fadi H

April 18, 2021

I returned the valve directly to Curtis,in AZ.Threads were a little off.The people at Curtis are great!! Sent me a new one PP. My $6.50 postage to ship it to them,was on me.No one is perfect!

Bob C

March 18, 2021

I ordered 2 Curtis Drain Valves and they arrived quickly and in proper order.

Gus

January 20, 2021

Works as advertised

Gordon L

April 28, 2020

Its a sump drain- so far, so good.

Paul

March 20, 2020

A perfect replacement for the leaking drain valve on my PA12. It was delivered in two days. Great service as always from Aircraft Spruce.

Scott D

November 10, 2019

Curtis drain valves work well but tend to leak over time. Can’t seem to find replacement O-rings and replace entire valve each time.

Cliff F

August 3, 2019

Worked wonderful

Joseph M

March 7, 2019

Great product with fast standard shipping

Paul A

March 4, 2019

Worked great

David A

August 13, 2018

Replacing the originals on my pa28-181. Old ones 40 years old and starting to seep. If this set is as long lived I have nothing to worry about. OEM.

Jerry D

May 24, 2018

Just installed new Curtis CCA-1800 to replace the heavily rusted SAF-AIR CAV-110 drains on my RV. They look & work great. I expect the brass will cope much better with the salty coastal air.

Chris S

September 12, 2017

Exactly what was needed, Aircraft Spruce overnighted it to me from CA and I was able to fly to KOSH and Airventure the next day, Great Service!!

Rick H

August 3, 2017

I wish they would give a thread outside diameter, I had to learn that the hard way. For example: a 1/8 NPT has a 3/8 outside thread diameter, 1/4 NPT has a 1/2 outside diameter, and a 3/8 NPT has a 5/8 outside diameter, and I assume 1/2 NPT has a 3/4 outside diameter.

Jared J

Verified Purchase

CURTIS DRAIN VALVE CCA-1300

July 15, 2021

Used these quality sump drains for many years. No complaints with the product, except, for the totally ridiculous high price that every retailer/wholesaler charges. Everybody has become jaded to the outrageous pricing for aviation related products. Its ridiculous.

Jim

April 12, 2020

No longer brass but now aluminum. First sign of resistance, probably because the threads were off, the valve distorted and could not be used. Pure waste of money but I did salvage the seal and used it on the old brass unit it was going to replace. Dont waste your money if you can find new seals.

Al D

April 13, 2019

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: I have the port with 9/16-18 NPT thread. Which Curtis valve will fit: 3/8 or 1/4 thread?

|If you have measured your port and got 9/16", then the next closest size to this is 3/8" NPT.

Q: With the NPT, is any sealant or lube required on threads?

Nothing is required but you could use Ez Turn if you would like.

Q: Which 1/8 NPT valve would replace the SAF-187? Id like to be able to push to drain by hand rather than fuel cup probe.

You can use P/N# 05-01865 for the push type.

Q: Can I use CCA-1350 or 1300 as an Oil drain valve on my experimental aircraft?

These are for oil and fuel systems so if the thread is correct for your application you should be able to use it on an experimental aircraft.

Q: Which Curtis valve is appropriate for a PA28-161?

According to the Valve Application Data Guide PDF in the documents, the PA28-161 generally uses the CCA-1550 (Piper No. 492-022) valve.

Q: What is the difference between part CCA-1250 and part CCA-1550

CCA-1250 is spiral, twist open and CCA-1550 is push to open, turn to lock and conforms to NSN 2915-00-202-6420 when CCA-1250 does not.

Q: Do you sell the model CCA 1100?...i see it on Curtis Website

Yes, you can find it by searching either CCA-1100 or 05-12914 on our website.
