Name: Garmin GTN 650Xi GPS / Nav / Comm System For Experimental Aircraft
Brand: Garmin
SKU: 11-17830
Price: 11222 USD
Availability: OutOfStock

1-877-4-SPRUCE | info@aircraftspruce.com
Aircraft Spruce & Specialty Co.

FREE SHIPPING ON ORDERS OVER $350 (USA ONLY - SOME EXCLUSIONS APPLY) | 877-4-SPRUCE

+1 More

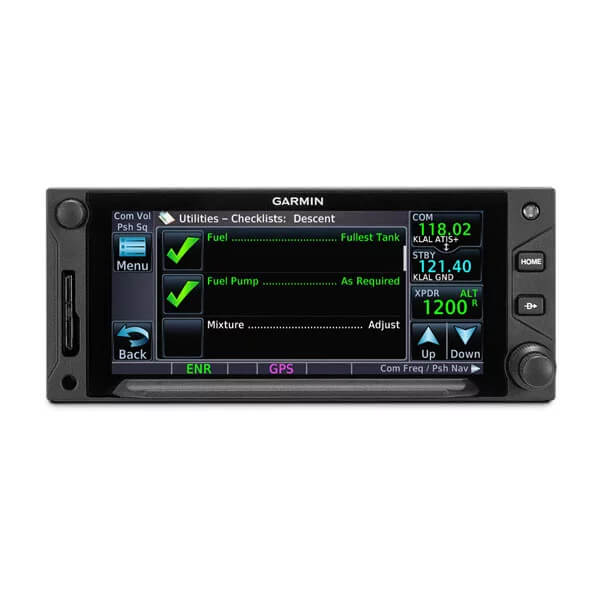

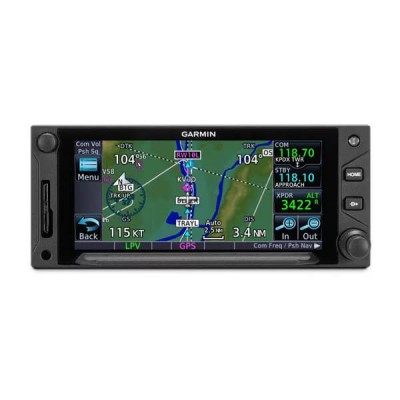

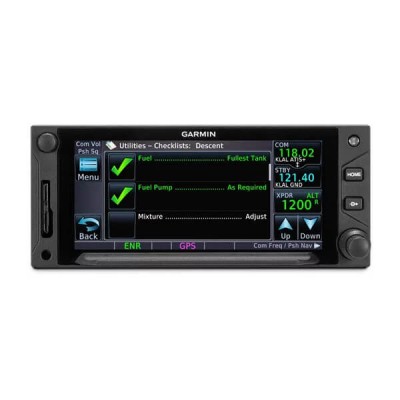

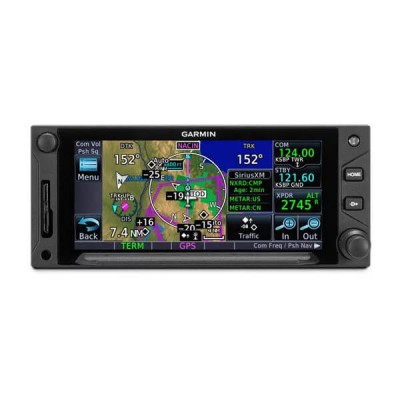

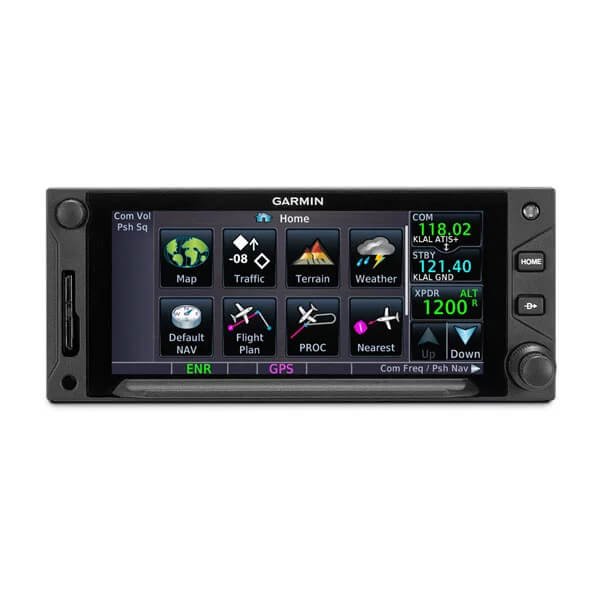

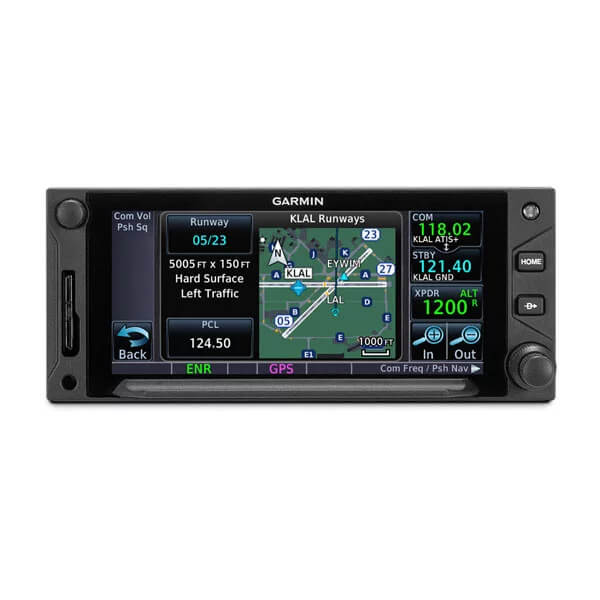

Garmin GTN 650Xi GPS / Nav / Comm System For Experimental Aircraft

0 Reviews 29 Answered Questions

Select Harness:

Unit with 4ft Wire PigtailUnit with Custom Wire Pigtail

Select Database:

AmericasInternationalSelect at Purchase

Add to Wishlist

JUMP TO

JUMP TO
Overview
Specifications
Compatible Interfaces
Videos
Reviews
Q&A
View in Catalog

Overview

Note: Per Garmin, even though this product is certified, we can only sell over the counter to experimental aircraft (must verify) with wire harness.

Garmin is changing the course of aviation yet again! Introducing the GTN 650XI. With more pixels, more processing power, more speed and performance, the GTN 650Xi system brings exciting new growth capabilities to the industry’s premier GPS/Nav/Comm/MFD platform.

Brighter, Faster, Sharper, Better

Do-It-All Touchscreen
Intuitive touchscreen interface provides quick access to navigation, radio tuning, multifunction display features and more.

Lightning-Fast Response
Powerful dual-core processors boost the GTN Xi series graphical display capabilities — with faster zooming, panning and map rendering on the display.

High-Resolution Display
With almost double the pixel count of its predecessor, the GTN Xi series features wider viewing angles and one of the highest-resolution displays ever offered in this class of avionics..

Work Saving Ways to Tune and Display

Multi-function Display
Supporting multiple inputs, the 4.9” display can put moving maps, terrain, traffic, weather, airport diagrams and more at your fingertips.

Easy Data Entry
Use the on-screen QWERTY keyboard or traditional concentric knobs to enter frequencies, waypoint identifiers, routings and more.

Tell It, Tune It
Available Telligence™ voice control technology helps reduce pilot workload by responding to hundreds of spoken commands with the press of a button on the yoke.

Pinch, Swipe Gestures
A quick finger swipe lets you pan across the map display. Or use a smartphone-like pinch-to-zoom motion to scale up or down on any map, traffic or terrain page.

Specifications

TSO applicability: C34e; 2C34f; C36e Class A; 2C36f Class A; C40c; 2C40c; C74d Class A; C112e; C128a; 2C128; C146e Class 3; C151d Class A, B; C157b Class 1, 2; 165b; C169a Class C, E, 3, 4, 5, 6; 2C169a Class C, E, H2, 3, 4, 5, 6; C194; C195b Class B1, B3, B5, B7; C209
Display size: 4.9" (125 mm) diagonal
Display resolution: 834 pixels (W) x 370 pixels (H)
Unit bezel height: 2.65" (67 mm)
Unit bezel width: 6.25" (159 mm)
Unit depth with connectors: 11.25" (286 mm) (measured from face of aircraft panel to rear of connector backshells)
Unit weight: 5.5 lbs (2.48 kg)
Input voltage range: 11 VDC - 33 VDC
Operating temperature range: -20° C to 55° C (-4° F to 131° F)
Number of GPS channels: 15 (12 GPS and 3 GPS/WAAS/SBAS)
LAT/LON position accuracy: <1.25 meter RMS horizontal, < 2 meter vertical, with WAAS
Maximum velocity: 1,166 knots
Position update Interval: 0.2 sec (5 Hz)

Compatible Interfaces

Interface	Manufacturer	Model	Notes/Info
Air Data Computer	B & D	90004-003
	Honeywell (Bendix/King)	KDC 281
		KDC 481
	Insight	TAS 1000
Altitude Serializer/Encoder	Garmin	GTX 327
	ACK Technologies	A-30 (Mod 8 and above)
	ARNAV	FC-10
		FT-10
	Electronics International	FP-5L
	Icarus Instruments	3000
	JP Instruments	EDM-700
	Sandia	SAE 5-35
	Shadin	833811-00 (AIS-380)
		8800T
		9000T
		9200T
		F/ADC-200
		F/ADC-2000
		91204XT(38)D (Miniflo-L)
		91053XP (Digiflo-L)
		91053XT-D (Digiflo-L)
		912802-( ) (Digidata)
	Trans-Cal Industries	IA-RS232-X
		SSD120
Audio Panel	Garmin	SL10
		SL10MS
		SL10M
		SL10S
		SL15
		SL15M
		GMA 340
		GMA 347
		GMA 35(c)
		GMA 350(c)/350H(c)
	Honeywell (Bendix/King)	KMA 24
		KMA 24H-70/71
		KMA 26
		KMA 28
	PS Engineering	PMA 6000
		PMA 7000 Series
		PMA 8000 Series
Autopilot	Garmin	GFC 500
		GFC 600
	Bendix	M4C
		M4D
	Century	I/II/III/IV
		21/31/41
		2000
		Trident
		AK 1081
	Cessna	300B/400B/800B
		300 IFCS/400 IFCS/800 IFCS/1000 IFCS
	Collins	APS 65 ( )
	Honeywell (Bendix/King)	KAP 100/140/150
		KFC 150/200/250/300
		KFC 225/275/325
	Sperry	SPZ 200A/500
	S-TEC	System 20/30/40/50/55/60-1/60-2/60 PSS/65
		System 55X
		ST-901
Datalink Weather Display and Control	Garmin	GDL 69/69A	GDL 69A also provides SiriusXM radio entertainment.
		GSR 56	GSR 56 also provides text/voice communication
DME Control	Collins	DME 40
		DME 42
	Honeywell (Bendix/King)	KN62/62A
		KN63
		KN64
		KDI 572/574
		KDM 706
	Narco	DME 890
		IDME 891
EFIS	Garmin	G500/G600
		TXi Series
		G5
		G3X Touch
	Avidyne	EXP5000
	Honeywell (Bendix/King)	EFS 40/50 (SG 465)
EHSI	Sandel	SN 3308
		SN3500/4500
FIS-B Weather Display and Control	Garmin	GDL 88
Fuel/Air Data	Garmin	GTX 327
	ARNAV	FC-10
		FT-10
	Electronics International	FP-5L
	JP Instruments	EDM-700
	Shadin	F/ADC-200
		F/ADC-2000
		91204XT(38)D (Miniflo-L)
		91053XP (Digiflo-L)
		91053XT-D (Digiflo-L)
		912802-( ) (Digidata)
IRU/AHRS	Collins	AHS-85E
Lightning Detection Display and Control	L-3 Communications	WX-500
Multifunction Display	Garmin	GMX 200
		MX20
	Avidyne	EX500
		EX5000
NAV Indicator	Garmin	GI 102/A
		GI 106/A
	Century	NSD 360A
		NSD 1000
	Collins	331A-6P
		331A-9G
		PN101 (331A-3F/3G)
		IND-351D
	Honeywell (Bendix/King)	KI 202A/203/204/206
		KI 208/A
		KI 209/A
		KI 525A
		KPI 552/B
		KPI 553/A/B
	Mid Continent	MD222-402
		MD222-406
		MD200-302/303/306/307
	Sperry	RD 444
		RD 550A
		RD 650
	S-TEC	ST 180
Synchro Heading Source	Bendix/King	KI-525A
TAS/TCAS/TIS Traffic Display and Control	Garmin	GTS 800/820/850
		GTX 330/33/330D/33D
	Avidyne (Ryan)	TAS 6XX (TCAD 9900BX)
	Honeywell (Bendix/King)	KMH 880 (KMH 820)
		KMH 980 (KMH 920)
		KTA 870 (KTA 810)
		KTA 970 (KTA 910)
	L-3 Communications	SKY497 (Skywatch)
		SKY899 (Skywatch HP)
Terrain Avoidance and Warning System	Honeywell (Bendix/King)	KGP 560
		KMH 880 (KMH 820)
		KMH 980 (KMH 920)
Transponder Display and Control	Garmin	GTX 32
		GTX 327
		GTX 328
		GTX 33/33D
		GTX 330/330D
		GTX 325/335(R)/345(R)
Weather Radar Display and Control	Garmin	GWX 68
		GWX 70
		GWX 75
	Bendix/King	RDS 81 (RS 811A)
		RDS 82 (RS 181A)
		RDR 2000 (ART 2000)
		RDR 2100 (ART 2100)

Videos

https://www.youtube.com/embed/jNg6KkdwCnQ

Customers Also Viewed
Frequently Purchased With
Related Items

Reviews

Submit a Review

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can I install a GTN 650 and GNS 420W so they will work together and crosfill information. Also, do they work with the same database subscription?

In upcoming Garmin 5.02 software update it will allow the GNS 420W to crossfill to the GTN 650 (and only that direction) and yes it is a separate database subscription.

Q: Does the Garmin GTN 650 come with the installation kit and tray?

The Garmin GTN 650 does come with installation kit and tray.

Q: Can I simply just replace my GNS 430 with the GTN 650 by just pulling the GNS 430 out of the tray and sliding the GTN 650 in its place?

The GTN 650 is not a slide in replacement for the GNS 430 nor is the tray the same.

Q: Is the Garmin GTN 650 or any of its components made in China?

No, to have a TSO you must manufacture all parts in the U.S.

Q: Regarding the GARMIN GTN 650 GPS / NAV / COMM SYSTEM: What areas are covered by the Americas database vs. the International Database? If you choose the Americas, can you update to the International later?

The Americas database includes North and South America. The international version covers every continent. You can update the database at any time.

Q: Will I be able to upgrade the GPS database on the Garmin GTN 650 to International after purchase? Currently the plan is to only use the plane in the United States but if I wished to take it overseas would that be available?

Yes, per Garmin, you can update the database at any time after purchase.

Q: Does the GTN-650 include a standard glideslope receiver? Does it support a standard CDI which includes glideslope position and status? If using the GPS receiver for an LPV approach, does the GTN-650 output vertical position to a glideslope-equipped CDI?

The GTN series supports glideslope CDI indicators. Vertical indications are displayed on a compatible CDI.

Q: Will the GTN 650 and GTX 345 installed together enable my 796 Garmin portable to receive traffic and weather?

Yes via the Bluetooth on the 796 and GTX 345.

Q: Does the Garmin GTN-650 come with a Software Loader SD Card, to allow firmware updates and system configuration? If not, how is this obtained? What is the cost?

The GTN 650 includes a data card. Database information will have to be obtained from a Garmin installing dealer.

Q: Is the external cooling fan shown in the Installation Manual (Table 3-13 and Figure E-2) included with the purchase of GTN-650?

Yes, a cooling fan is included with the unit.
