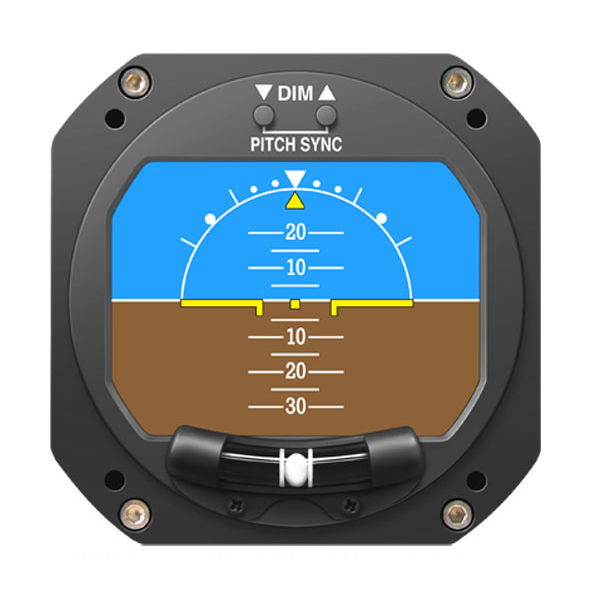

RCA 2610-3 Series Digital Attitude Indicators - 3 Inch - FAA TSO

6 Reviews 12 Answered Questions
Select Pitch Sync:
With Pitch SyncNo Pitch SyncWith Pitch Sync + Pitot StaticPitot Static / No Pitch Sync
Select Slip / Turn:
Standard (No Digital Slip / Turn)With Slip Indicator + Turn RateWith Slip Indicator Only
Select Battery:
Without Battery BackupWith Battery Backup
Quantity
Add to Wishlist
JUMP TO
  • JUMP TO
  • Overview
  • Features
  • Specifications
  • Documents
  • Accessories
  • Reviews
  • Q&A
  • View in Catalog
  •

Overview

The RCA2610 is the updated version of the popular RCA2600 Electric Digital Attitude Indicator. It is the perfect companion to the RCA1510 Digital Heading Indicator. This version has the same form, fit, and function as the original but has dual processors, improved screen resolution and updated software. The optional Pitch Sync feature allows pilots to instantly synchronize the airplane symbol to the horizon line when flying in a pitch up or pitch down attitude.

RCA2610-P
  • Is a Digital Attitude Indicator that has no gyroscope. It utilizes several internal accelerometers to provide Pitch and Roll information. Airspeed is part of the calculations needed in this process. In some instances with high performance aircraft, sudden acceleration/deceleration or high g-forces adversely effect the accelerometer speed calculations. The RCA2610-P Series adds Pitot-Statc airspeed input which ensures constant and accurate speed data for greater reliability.
The RCA2610-G
  • Version comes without the Pitch Sync feature and functions like the original model with the brightness controls only.
    The RCA2610-P-G
  • With Pitot-Static and no Pitch Sync.
The RCA2610 is designed to handle the high vibration environment found on helicopters and yet, their light weight makes them perfect for soaring. This makes the RCA2610 the most versatile and dependable Digital AI on the market today. With no moving parts to wear out, this instrument will provide years of reliable service - that’s why it includes a full two-year warranty!

All RCA2610 models can be ordered with an optional slip indicator (inclinometer) which satisfies FAA AC 91-75 for even greater versatility.

Standard models are shipped with 0 degrees tilt. The panel tilt angle can be set from 0 to 90 degrees in one degree increments, but must be specified at time of order.

Made in the USA

Features

  • Fast Dual Processors
  • Pitch Sync Feature
  • Sharp Anti-Aliased Screen
  • Black Anodized Bezel
  • Fast Response in Roll & Pitch
  • 2 Year Warranty
  • Vibration Resistant
  • Multi-volt plug & fly
  • Lighter weight
  • FAA/EASA Certified

Specifications

  • Operating Voltage: 9 to 32VDDC
  • Starting Current: 9VDC: 0.18 to 0.22 AMPS MAX
  • Running Current: (14VDC system) 0.20 AMPs MAX, (28VDC system) 0.18 AMPs MAXa
  • Circuit Breaker Size: 2AMP
  • Settling Error: 1 Degree Maximum in Roll and Pitch
  • Operating Temperature Range: -30º to +50º C
  • Dimensions: Please see specifications document.
  • FAA Specification Conformance: TSO-C4c, TSO-C113a, DO-160F & DO-178B
  • EASA Specification Conformance: ETSO-C4c and ETSO-C113a

Documents

  • RCA 2610 Series Specifications
  • RCA2610-P Pitot-Static Specifications
  • RCA 2610 Series TDS
  • RCA 2610-P Series Operations Manual
  • Accessories
  • Customers Also Viewed
  • Frequently Purchased With
  • Related Items
Promo
RC ALLEN ESP 14V 702-0014-01
$725.00
Add to Cart
Promo
RC ALLEN ESP 28V ESP-1 W/ 702-0028-01
$899.00
Add to Cart
Promo
RC ALLEN ESP 14V 702-0014-02
$725.00
Add to Cart
Promo
RC ALLEN ESP 28V ESP-1 W/702-0028-02
$899.00
Add to Cart
Promo
RC Allen Mini6 Multifunction Digital Instrument FAA TSO
$3250.00
Quick Shop
Promo
uAvionix AV-30-C Primary Flight Display - Certified
$1995.00
Quick Shop
Promo
Garmin G5 Primary Electronic Attitude Display - STC'd For Certified Aircraft With LPM
$2395.00
Quick Shop
Promo
Whelen Orion 360 Beacon LED Lighting FAA TSO
$718.00
Quick Shop
Promo
RC Allen RCA 1510 Series Digital Heading Indicators FAA TSO
$2835.00
Quick Shop
Promo
Unshielded Wire MIL-W-22759/16
$18.55
Quick Shop
Promo
Lycoming Gaskets
$4.70
Quick Shop
Promo
Garmin G5 DG / HSI - STC'd For Certified Aircraft With LPM
$3325.00
Quick Shop
Promo
O-Rings
$3.35
Quick Shop
Promo
Garmin GI 275 CDI / MFD 3-1/4 Inch Base Kit FAA STC
$2995.00
Quick Shop
Promo
Brackett Air Filters
$26.55
Quick Shop
Promo
Goodyear Tube Type Tires
$306.00
Quick Shop
Promo
Aeroshell Grease
$153.95
Quick Shop
Promo
JPI EDM-730 Engine Monitoring System
$4363.00
Quick Shop
Promo
Phillips 66 X/C Aviation Oil 20W50
$1181.00
Quick Shop
Promo
Camguard Aviation Oil Additive
$189.00
Quick Shop
Promo
AN960 Flat Steel Washers
$0.17
Quick Shop
Promo
Everything Explained For The Professional Pilot
$52.95
Quick Shop
Promo
AN3 Bolts ( 10-32 )
$13.57
Quick Shop
Promo
RC ALLEN 2600 SERIES SCREW ON INCLINOMETER
$149.95
Quick Shop
Promo
RC ALLEN RCA1510-3 DIGITAL HEADING INDICATOR 0 DEGREE TILT
$2835.00
Quick Shop
Promo
AMPHENOL CONNECTOR MS3116E8-4S
$42.50
Quick Shop
Promo
TED XPDR ANTENNA
$22.85
Quick Shop
Promo
AEROLEDS SUNSPOT 4587 TAXI LIGHT 01-1030-4587
$650.00
Quick Shop
Promo
SNAPVENT CC3251 PAIR
$23.65
Quick Shop
Promo
RC ALLEN ESP 28V ESP-1 W/702-0028-02
$899.00
Quick Shop
Promo
REPL WHEEL 6x2.125x5/8 BALLOON
$45.70
Quick Shop
Promo
MAULE ANTI-SHIM COMP SPRING KIT 4001-29
$109.75
Quick Shop
Promo
SAFETY WIRE .032 SS 1 LB.
$9.80
Quick Shop
Promo
MS35769-5 GASKET
$2.20
Quick Shop
Promo
MS35769-41 GASKET
$1.62
Quick Shop
Promo
GOODYEAR 8.5-6 6PLY RIB TIRE/TUBLESS 856T61-1
$399.00
Quick Shop
Promo
GARMIN AERA 760 PORTABLE GPS NORTH AMERICA
$1499.00
Quick Shop
Promo
MS35769-31 GASKET
$0.93
Quick Shop
Promo
LANG 9 A-512, A-560-1, A-560-2
$11.50
Quick Shop
Promo
MS35769-15 GASKET
$1.19
Quick Shop
Promo
BOLT UNDRILLED AN4-23A
$0.70
Quick Shop
Promo
PS ENG PM 3000 4 PLACE STEREO INTERCOM W/ CREW TSO
$549.95
Quick Shop
Promo
AIRGIZMOS GARMIN 696 695 AUDIO JACK
$13.95
Quick Shop
Promo
EI FP 5L FUEL FLOW WITH HP GPS FT 60 FUEL PUMP 2-1/4 PMA
$598.00
Quick Shop
Promo
EI VA1A VOLT & AMP W/ INTERNAL SHUNT PRIMARY 2-1/4" PMA
$395.00
Quick Shop
Promo
GARMIN GTR 225 COM 10 WATT 25 KHZ SPACING TSO
$2246.00
Quick Shop
Promo
SAFE-T SYPHON 5/8 "
$8.50
Quick Shop
Promo
AA48108-2 TEMPEST OIL FILTER 6PK
$145.75
Quick Shop
Promo
PLASTIC BOX FOR AN900 GASK KIT
$14.60
Quick Shop
Promo
GILL SEALED BATTERY 7035-28
$324.00
Quick Shop
Promo
SS SCREW KT 180/182/185 CESSNA
$39.75
Quick Shop
Promo
EI P-100 CHT REPLACEMENT PROBE SCREW IN TYPE
$108.75
Quick Shop
Promo
RC ALLEN RCA1510-3 DIGITAL HEADING INDICATOR 0 DEGREE TILT
$2835.00
Quick Shop
Promo
RC ALLEN RCA1510-3 DIGITALHEADING INDICATOR 8 DEGREE TILT
$2835.00
Quick Shop
Promo
RC ALLEN RCA1510-3 DIGITAL HEADING INDICATOR SPECIFY TILT
$2835.00
Quick Shop

Reviews

Submit a Review

Installed an RCA2610 in place of the turn coordinator on my Cessna 340A. Great looking backup attitude indicator without all the clutter of other flight instruments (i.e., airspeed, altitude, vertical speed). And super simple install with just two wires and existing 3.125 standard hole formerly used by the turn coordinator plus a change in the circuit breaker (reducing from 5 amp to 2 amp). Bought the zero tilt unit but then discovered the C340A needs an 8 degree tilt. Called RC Allen and they recalibrated my unit to an 8 degree tilt for no charge except shipping. It is a year later and now the unit comes with digital turn coordinator. Called RC Allen again and my newer unit is upgradable to add digital turn coordinator and they are doing it just for shipping costs. Fantastic customer service with a really great product.

Joe L
April 27, 2020

Works fine but look at the picture, no slip ball so I bought an external one for $149 and when I turned it on it has a digital one. $149 wasted

Dave C
February 8, 2020

Added the RCA 2610 to my Piper and I love it! Its easy to get used to, it reliable, and accurate. The installation was easy, adding the back up ESP took a little time to find a great location but worth the time. I only wish that RC Allen charged a little less for the unit, but it is a great competitor to the G5 and if you want is the AI then there is no reason for adding all of the extra work for the G5. Now my next upgrade will be the RC Allen HI.

Hetor
May 13, 2018

I give it 5 stars, but I havent flown with it yet. The installation was straight forward (with an A&P, of course). The only change I had to make was the circuit breaker switch. The old was 5 amps and we installed a 2 amp as called for in the instructions. The only down side is the cost. Not worth the extra thats added on because its certified.

Dan
March 24, 2018

So far it is nice. Replaced our turn coordinator with the RC2610. Screen space is a bit smaller than traditional AI but outstanding backup to a Vacuum AI. Only issue we had was, the tilt. We thought tilt was the amount of adjustment you can get with the up down arrows. It is not. It is for someone with a panel that is tilted 8 degrees. (Not sure who has that). No applicability list that recommends proper AI for your aircraft. Asked Aircraft Spruce for swap but they are not able to be cause we placed it in the panel. We were advised to sell on e-bay. We called RC Allen and they are going to adjust ours to zero tilt for additional $200. Expensive mistake on our part but at least a better solution than eating the price of a new one or the loss of value by selling on E-Bay. So it works nice but, be careful which unit you buy. It is yours period.

Richard S
January 14, 2019

It gets 2 stars because it looks good....What a rip-off otherwise. 2 year warranty....? Wow! I paid for that warranty up front...Should be a free replacement...

Vern S
October 1, 2019

Q&A

Submit

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What type of wire does the RCA 2610 attitude indicator require?

20 GA to 22 GA wire is recommended to use.

Q: Do you have a model that can interface with a Piper Autocontrol lll?

Unfortunately no items in this line can drive an autopilot system.

Q: Can this unit be installed as primary AI? I see that is TSO approved, but the description is not specific on this.

Yes, this RCA 2610 series instrument is designed to be used as a primary attitude indicator.

Q: Is the electrical plug supplied in the RCA 2610 attitude indicator box?

Yes. The RCA 2610 comes with a mating connector.

Q: Is a battery backup required with the RCA 2610 attitude indicators?

Yes. A battery backup is required per the manufacturer.

Q: Does Part # 10-06437 have an internal battery backup?

Part # 10-06437 does not have an internal battery backup. Per Manufacturer Rev A.

Q: Can the RC2610 replace both the artificial horizon and slip and skid indicator? This would eliminate the need of my venturi vacuum system.

The RC-2610 can replace the artificial horizon the slip and skid indicator can be ordered as an optional feature PART # 10-03862.

Q: Is the battery backup included with this unit, and if not, what is the part number?

No, the battery backup is not included in most models of the RCA 2610. We do offer part # 10-07006 which includes the battery backup. It is a RC ALLEN RCA2610-3 DIGITAL ATTITUDE W/ SLIP IND, TURN RATE, BATTERY INCLUDED. However if you order a unit where the battery is not included, you would use the ESP battery backup part # 10-04171 this an external battery.

Q: The product information states The Digital Slip Indicator or the optional Mechanical Slip Indicator (P/N 444-0010-01) can be ordered to satisfy FAA AC91-75. To clarify, if you order the instrument with the digital slip and turn indicator, then you would NOT need to order P/N 444-0010-01, correct?

The digital indicator will also satisfy the FAA AC91-75.

Q: Under specifications, it lists a 2 Amp circuit breaker, but in the product literature, it says a 1 Amp breaker. Which is correct?

Per the manual a 1 amp breaker is required.

Q: What tilt is this unit set for? Is it zero tilt?

Yes, part # 10-06431 (and other units on this page) are zero degree tilt. Please contact our avionics sales team for price and lead time of custom tilt units.

Q: Please provide us with the part number for the replacement for a Electrical Digital Horizon RC Allen, Model RCA2600-3, P/N 102-0103-01

10-06431 will replace the RCA2600-3.

  • Previous
  • 1
  • 2
  • Next

View in Catalog

View Image View in Catalog
Question About: RCA 2610-3 Series Digital Attitude Indicators - 3 Inch - FAA TSO
Email:
Your Name:
Question:
Submit
Review Product: RCA 2610-3 Series Digital Attitude Indicators - 3 Inch - FAA TSO
Email:
Your Name:
Rating:
Comments:
Submit
Contact

Toll Free: 877-477-7823
Customer Service: 800-861-3192
Avionics: 800-826-3160
Fax: 800-329-3020

Location & Hours

West - Corona, CA
Southwest - Chandler, AZ
Central - Fort Worth, TX
Midwest - West Chicago, IL
Northeast - Harrisburg, PA
East - Peachtree City, GA
Alaska - Wasilla, AK
Canada - Brantford, ON

Help
  • Contact Us
  • Dealer & Wholesale Program
  • Online Bill Pay
  • Payment Information
  • Price Match Policy
  • Privacy Policy
  • Quality Control
  • Return / Core Policy
  • Shipping & Delivery
  • Terms & Conditions
Company Info
  • About Us
  • Aircraft Spruce Print Catalog
  • BT-13 Restoration
  • Customer Testimonials
  • International Reps
  • Mission Statement
  • Poberezny Estate
  • President's Message
  • Sponsorships
  • The Spruce Team
Resources & Partners
  • 2022 Airshows
  • AOPA Info & Links
  • EAA Info & Links
  • EAA Hints for Homebuilders
  • EAA Project Give Flight
  • Find a Flight School
  • Fly-Ins & Events
  • Homebuilding How-To Articles
  • Military Discount Program
  • Popular Search Terms
Shopping Tools
  • Aviation Gift Guide
  • Avionics Harness Shop
  • Bargain Bin
  • Current Promotions & Rebates
  • Custom Hose Assemblies
  • Deal of the Day
  • Gift Cards
  • New Products
  • Special Order Request
  • Wishlists
Subscribe to our weekly newsletter
  • LinkedIn
  • Twitter
  • Facebook
  • Instagram
  • Youtube
California Privacy Rights - Exercise My Privacy Rights
By using this website, you agree to our Terms & Conditions and Privacy Policy
Copyright ©1995 - 2022 Aircraft Spruce. All rights reserved. Prices subject to change without notice. Invoice currency USD.
Close Icon
Subscribe to our weekly newsletter New product announcements, promotions, discounts, & events.
