Name: Headset Panel Jacks
SKU: 11-04936
Price: 3.4 USD
Availability: InStock
Rating: 4.82 (33 reviews)

1-877-4-SPRUCE | info@aircraftspruce.com
Aircraft Spruce & Specialty Co.

FREE SHIPPING ON ORDERS OVER $350 (USA ONLY - SOME EXCLUSIONS APPLY) | 877-4-SPRUCE

Headset Panel Jacks

33 Reviews 12 Answered Questions

From $1.40 to $14.50

Description	Part Number	Price	Buy

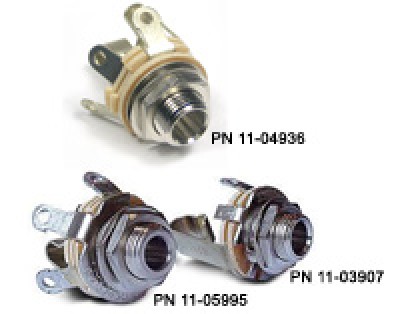

Stereo Headphone Jack, 3-Circuit SWC-12B	11-04936	$3.40	Quantity
Mono Headphone Jack, 2-Circuit JJ-034	11-03907	$3.95	Quantity
Microphone Jack, 3-Circuit JJ-033	11-05995	$4.65	Quantity

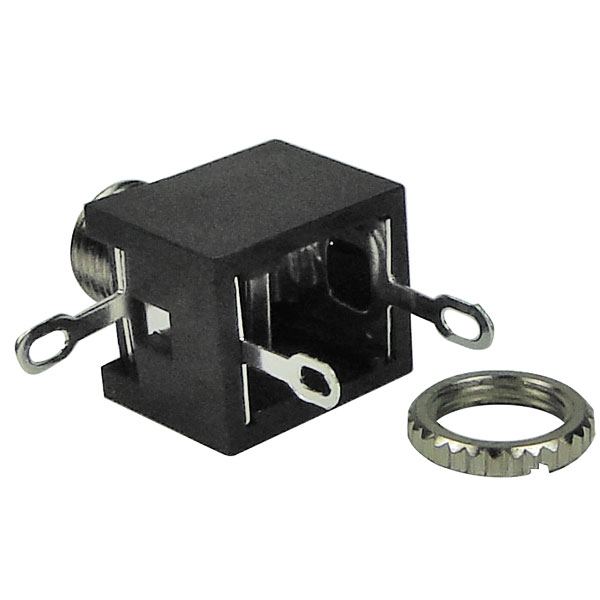

Music 3.5mm Jack	11-09332	$1.40	Quantity

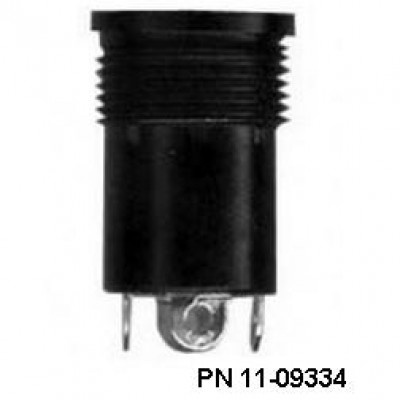

Helicopter Headset Jack	11-09334	$14.50	Quantity

Subtotal $0.00

Add to Wishlist

JUMP TO

JUMP TO
Overview
Accessories
Reviews
Q&A
View in Catalog

Overview

Contact springs are of special alloys for long life. Insulation is high dielectric strength phenolic. Tinned terminal lugs for easy soldering. Short frame. Mounts by 3/8-32 threaded bushing and nut. Open circuit until plug inserted.

Accessories
Customers Also Viewed
Frequently Purchased With

Reviews

Submit a Review

Excellent for recording sounds in your cockpit

Luis R

Verified Purchase

MINI STEREO JACK 27-655 3.5MM

February 22, 2022

Excellent for your headset installation...

Luis R

Verified Purchase

SWITCHCRAFT SWC11 MONO HEADPHONE JACK JJ-034

February 22, 2022

Excellent product to complete my headset installation

Luis R

Verified Purchase

SWITCHCRAFT SWC S12B MICROPHONE JACK JJ-033

February 22, 2022

Quality made product. Spruce’s price and shipping price is lower than a giant on-line retailer.

Don B

Verified Purchase

SWITCHCRAFT STEREO HEADPHONE JACK SWC-12B

February 4, 2022

We have been using this product often and we have not had any issues. My only suggestion is to buy the insulating washer as well when you order this item. Same with headphone socket.

Aeronautical I

Verified Purchase

SWITCHCRAFT SWC S12B MICROPHONE JACK JJ-033

December 13, 2021

Perfect for what I needed. Delivery was quick (a day early). Now if you could only had a molded adapter to a 3.5 plug it would be perfect.

Phillip T

Verified Purchase

SWITCHCRAFT SWC S12B MICROPHONE JACK JJ-033

November 10, 2021

Good quality at a fair price.

Steven S

Verified Purchase

SWITCHCRAFT SWC S12B MICROPHONE JACK JJ-033

November 6, 2021

James A

Verified Purchase

SWITCHCRAFT SWC11 MONO HEADPHONE JACK JJ-034

October 29, 2021

James A

Verified Purchase

SWITCHCRAFT SWC S12B MICROPHONE JACK JJ-033

October 29, 2021

David T

Verified Purchase

SWITCHCRAFT STEREO HEADPHONE JACK SWC-12B

September 30, 2021

David T

Verified Purchase

SWITCHCRAFT SWC S12B MICROPHONE JACK JJ-033

September 30, 2021

Brm A

Verified Purchase

SWITCHCRAFT STEREO HEADPHONE JACK SWC-12B

September 3, 2021

Exactly as presented in the catalog

Robert S

Verified Purchase

SWITCHCRAFT SWC S12B MICROPHONE JACK JJ-033

July 7, 2021

Keith W

Verified Purchase

SWITCHCRAFT STEREO HEADPHONE JACK SWC-12B

June 3, 2021

Keith W

Verified Purchase

SWITCHCRAFT SWC S12B MICROPHONE JACK JJ-033

June 3, 2021

Super duper Excellent!!! Best thing since sliced bread, toilet paper, and the Ercoup

Jesse U

May 3, 2021

Quick service, high quality.

Phillip T

November 3, 2020

Good quality at a fair price.. I would buy again and recommend to my friends

Graham S

November 2, 2020

Worked perfectly

Greg

July 22, 2020

Excellent quality. I’ve bought over 150 of these for projects and they’ve always been well made and delivered quickly.

Rob H

March 23, 2020

Order arrived ahead of promised date, was complete and correct.

Dave

December 15, 2019

Excellent product. These panel jacks have a slightly smaller diameter, and provide about twice the “retaining” power compared to similar products.

Raymond R

November 21, 2019

Its a good quality jack

Stephen

October 1, 2019

Not much to say but Good quality

Stephen

October 1, 2019

Fantastic service. Ordered the gear and it arrived at my address in Australia within days. Better service than I get from Australian businesses.

John M

September 7, 2019

The switch arrived promptly. I have yet to install it but am sure it will be fine.

Fred

January 6, 2019

Switchcraft is known for making good products and the S12B Microphone Jack P/N 11-05995 is no exception. I recently acquired an old aircraft microphone and thought it would be interesting to interface it to a computer for simulations by making a phantom power adapter. As the microphone uses the aviation standard .206/5.23mm plug, I needed a jack to connect it with. This jack is the perfect size for the aircraft microphone connector.

Robert S

July 24, 2018

I replaced my intermittent microphone jack with this one, easy solder installation, works great. Inexpensive repair!

Dan M

June 15, 2018

I have installed this in the panel, but have not wired them in yet They look good

Brian E

December 8, 2020

Ordered two. Got two of the right jack, but only nut and washer for one. Had to call and get rest mailed.

Bill

January 21, 2019

I needed to use this to make a non standard headset work. Everything seems to be well made and connections were easy to solder in the field.

James P

June 9, 2017

Isolating/insulating washers are not included.

Bernard G

May 4, 2017

Gets the job done, but does not include insulating washers. The first time I bought them, they did. Subsequent sets have not.

Cory

August 24, 2020

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Do these jacks come with associated mounting hardware (metal washer, insulating washer, nut)?

The Headset Panel Jacks do come with a metal washers and nuts but the insulating washer is purchased separately. Part# 04-00975 - Insulated Flat Washer Part# 04-00976 - Insulated Shoulder Washer

Q: What type of insulated washer should I purchase for headphone and microphone jacks part numbers 11-04936 and 11-05995?

Please see part #'s 04-00975 and 04-00976 for the appropriate insulated washer and shoulder washer.

Q: Trying to understand this confusion. What type of headphone jacks do I need to buy for standard GA headphones? Have Lightspeed Zulu headphones.Do these jacks come in sets for GA headphones? I am building a homebuilt plane.

Yes, if your Lightspeed headset has two plugs on the end of it and uses batteries to operate, then it is a Dual GA style headset. In that case, you will need one of part # 11-04936, which is the headphone side, and one of part # 11-05995, which is the mic side.

Q: What is the weight of these components? Part # 11-05995 and 11-04936

Part # 11-05995 SWITCHCRAFT SWC S12B MICROPHONE JACK JJ-033: weight approx 0.02 lbs.
Part # 11-04936 SWITCHCRAFT STEREO HEADPHONE JACK SWC-12B: weight approx 0.03 lbs.

Q: I have a helicopter with two plugs, does the 11-09334 come as a set or do I need to order a plug for each size?

These are priced and sold individually. One jack for an order of one.

Q: From what i can tell you only need the insulated flat washer and the insulated shoulder washer for the mic jack and not the headphone jack, however reading below it would seem you need it for both jacks. Please clarify.

We recommend using the those washers for each jack in your installation.

Q: Are these solder only or screw connections?

These require a solder connection.

Q: Please suggest wire part number appropriate for these jacks.

You can use shielded wire. The three conductor for stereo installations part # 11-05651.

Q: Do you sell just the nut for the jack seperately?

We do not have a separate part number for the nut as it comes together with the jack.

Q: Not sure which one would be for the Dual GA Plugs?

Part # 11-05995 is the mic jack for dual GA. Part # 11-04936 is the stereo headphone jack for dual GA.
