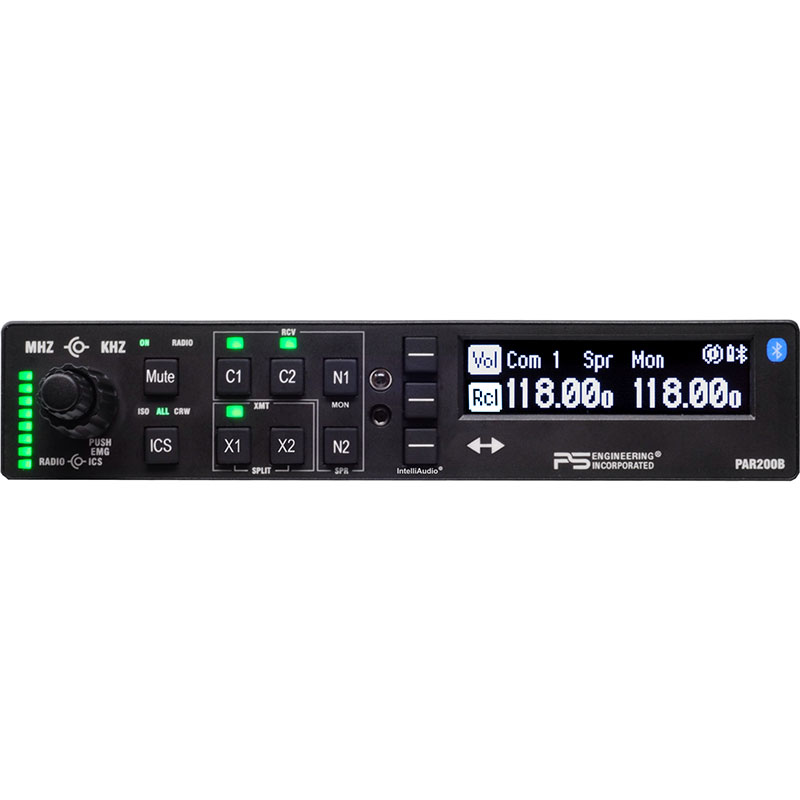

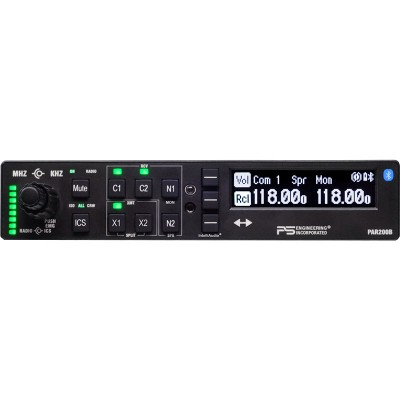

PS Engineering PAR 200B Audio Panel With COM Radio For Certified Aircraft
MFR Model# 050-228-0300
- JUMP TO
- Overview
- Features
- Reviews
- Q&A
- View in Catalog
Overview
|
The PAR 200B Audio Panel, hasn’t changed, the user interface has received a great amount of attention. The result is much easier to use and features a brilliant display and simplifies access to advanced functions.
The PAR200B is a full-featured audio selector panel with a 4-place stereo IntelliVox® (completely automatic VOX system) intercom and Bluetooth® interconnectivity. The VHF radio is remotely mounted to minimize the amount of panel space required. It also includes a built-in 10 Watt Speaker Amplifier. Another major enhancement is the addition of IntelliAudio®. This true dimensional sound system allows the pilot to pay attention to the radio that is important at any instant in time. This makes it much easier for the pilot to copy the weather while being able to identify when he hears ATC call his tail number. And to add flexibility, PS Engineering has included the highly lauded Bluetooth® technology. The pairing of phones or Bluetooth® enables audio devices is easily achieved for wireless entertainment. Telephone calls can be distributed in three different ways (as determined by the ICS switch). The pilot can make a private phone call, the crew can make a call, or all on board can be in on the conversation. And for music inputs, there are two different inputs and two types of music distribution. The standard configuration allows music 1 (or Bluetooth® to go to the crew while the passengers hear music too. The other selection allows music 1 (or Bluetooth) to go to all headsets. Up to 5 discrete radio frequencies can be stored in non-volatile memory for quick dial-up as well as being able to swap from and Com 1 to Com 2 by way of a yoke mounted switch. All installing hardware for the audio panel and radio are included. Microphone and Headphone jacks are not included. The PAR200B has fully independent power supplies so you can power up the radio or audio panel individually. And if you have a second Com or Navcom, you can use it as Com 1 and use our remote radio as Com 2. The PAR200B uses the same tray and connector as the GMA240, GMA340, PMA8000 series. However, there is additional wiring that is required to interface the Com Radio to the audio panel. |
Features
- Audio Panel
- FAA Approved
- Aviation Radio
- Bluetooth
- IntelliVox®
- IntelliAudio®
Reviews
Got this PAR 200b to replace an old dead KX-125 that was not repairable. Excellent choice and quality sound reception and transmission. Love the additional features of the new audio panel with the 2 Bluetooth capability. Making a phone call from the plane is simple and sound quality so good the party you are speaking with can’t even tell the engine in the plane is running.
I recently had one of these installed in my 182 and I could not be happier with the performance and functionality of this thing. The book says that the TY91 has to be wired as comm 1 to be able to monitor the standby frequency. Mine was wired as comm 2 and this feature still works.
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The manufacturer does not list the 200A as being compatible with the PAR200B.
Yes, the tray will be included with this unit.
