Aircraft Sextant Nav System With Constant + Fast Strobe 40W

19 Reviews 6 Answered Questions
Now $257.00/Each
Was $450.00
Save 42%
Quantity
Add to Wishlist
Part# 11-14934
MFR Model# SEXTANT 4.0-40W
JUMP TO
  • JUMP TO
  • Overview
  • Features
  • Videos
  • Accessories
  • Reviews
  • Q&A
  • View in Catalog
  •

Overview

These bulbs are standard parts and have been designed to meet the requirements of TSO-C30c.

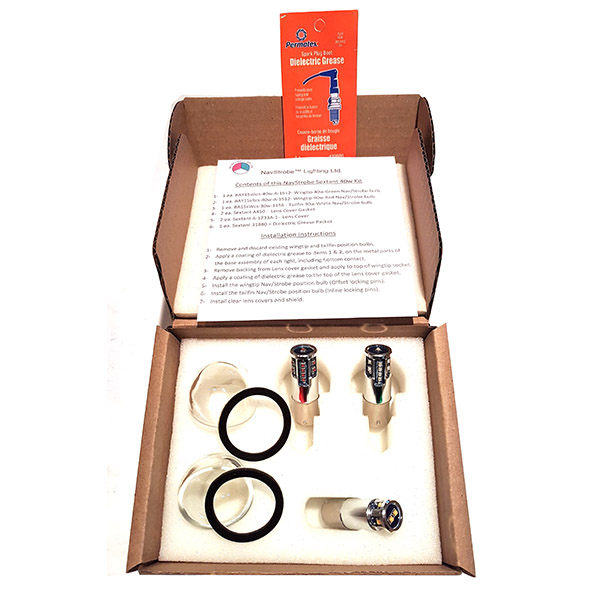

Complete combination navigation and strobe lights for your aircraft.

Emitter Types: Cree LED’s

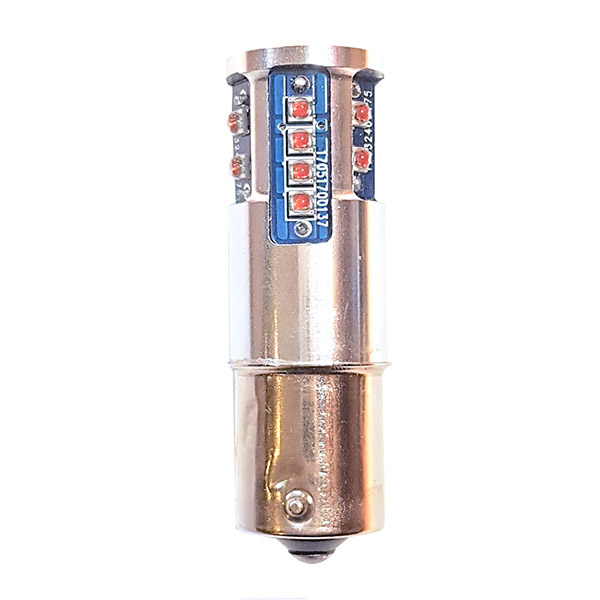

  • 1ea. Red Left wingtip combination navigation and strobe light (Sextant BAY15sRcs-40w-A-1512)

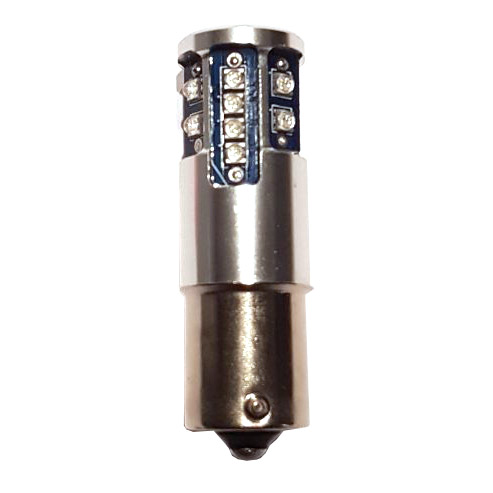

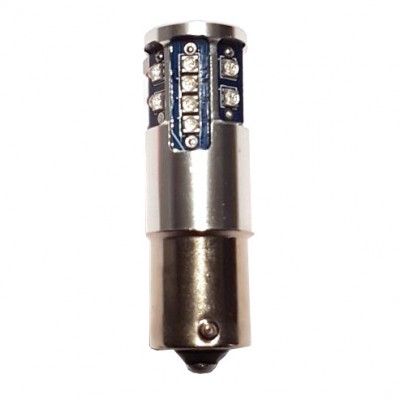

  • 1ea. Green Right wingtip combination navigation and strobe light (Sextant BAY15sGcs-40w-A-1512)

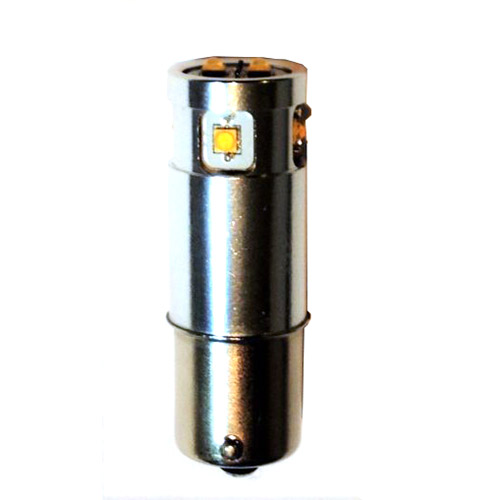

  • 1ea. White tailfin combination navigation and strobe light (BA15sWcs-30w-1156)
  • 2ea. Clear Lens covers (Sextant A-1233A-1)
  • 2ea. Lens cover gaskets (Sextant A450)
  • 1ea. Dielectric grease pouch (Sextant 31880)
  • Rated Voltage: 10-28VDC
Turn on first: Constant lighting / Turn on second time <3s: Fast Strobe. Switch between modes in fog/cloud etc.

Features

  • Draws <1000ma @ 14.2VDC (<1 amp)
  • 2 modes: constant & fast strobe
  • Base Type: BAY15s for wingtip & BA15s for tailfin
  • Application: Navigation Light replacement

Videos

//www.youtube.com/embed/hu9lTbQKMxQ?rel=0
  • Accessories
  • Customers Also Viewed
  • Frequently Purchased With
Promo
AIRCRAFT WINGTIP NAVIGATION LIGHT-GREEN STROBE 40W
$79.00
Add to Cart
Promo
AIRCRAFT WINGTIP NAVIGATION LIGHT-RED STROBE 40W
$79.00
Add to Cart
Promo
Unshielded Wire MIL-W-22759/16
$18.55
Quick Shop
Promo
Shielded Wire MIL-C-27500 - White - Per Foot
$4.60
Quick Shop
Promo
Whelen Microburst Plus II With Tail Light Kit ( Mb2G & Mb1Wt )
$549.00
Quick Shop
Promo
Tyco Circuit Breaker W31 Series
$43.65
Quick Shop
Promo
Whelen Microburst Plus III Kit Mb3R & Mb3G Lighting
$469.00
Quick Shop
Promo
Toggle Switches AN3021 / MS35058
$29.85
Quick Shop
Promo
Whelen Orion 600 Series Wingtip Position / Anti-Collision LED Lights
$652.00
Quick Shop
Promo
Ring Tongue Nylon Insulated Pidg Terminals
$0.00
Quick Shop
Promo
Concorde RG-25 Sealed Lead Acid Aircraft Battery
$297.00
Quick Shop
Promo
Nulite Instrument Lighting System FAA-PMA
$61.75
Quick Shop
Promo
Klixon 7277 Circuit Breakers
$22.50
Quick Shop
Promo
PSA Enterprises LED Replacement Lamps For Nav Lights
$34.75
Quick Shop
Promo
GE Sealed Beam Lamps Landing / Taxi Lights
$57.75
Quick Shop
Promo
Concorde RG-25XC Platinum Series Sealed Lead Acid Aircraft Battery
$346.00
Quick Shop
Promo
ACS Keyed Ignition Switch With Start Position A-510-2 FAA-PMA
$187.75
Quick Shop
Promo
AIRCRAFT PAR36 LED LANDING LIGHT
$215.95
Quick Shop
Promo
NAVSTROBE BEACON LIGHT W/CONSTANT & FAST WHITE STROBE 5W
$48.55
Quick Shop
Promo
WHELEN LED PARMETHEUS PLUS PAR36 14V LAND P36P1L
$274.00
Quick Shop
Promo
AIRCRAFT POSITION LIGHTPIPE LEFT
$13.50
Quick Shop
Promo
AIRCRAFT POSITION LIGHTPIPE RIGHT
$13.50
Quick Shop
Promo
WHELEN LED PARMETHEUS PLUS PAR36 28V LAND P36P2L
$271.95
Quick Shop
Promo
CHAMPION CT-482 SPARK PLUG EROSION GAUGE
$4.35
Quick Shop
Promo
TEMPEST AA48108-2 OIL FILTER
$25.50
Quick Shop
Promo
MS21044N4 ELASTIC STOP NUT
$0.17
Quick Shop
Promo
CAMLOC 2600/2700 RCPT 212-12ND
$3.95
Quick Shop
Promo
AN815-4 STEEL UNION
$12.60
Quick Shop

Reviews

Submit a Review

This is a great little set. I thought about spending the extra for the 45w version but the 40w is SO much brighter than the original bulbs its a fantastic value. The positions are bright and clear with great quality. The dialectic is a nice touch to make it complete. The clear glass replacing the red and white were a bit taller than the originals I was replacing. With the new rubber that came with the kit, it made the metal cover not fit all the way down. Im considering sanding down the flat edge a little bit. The flashing mode, which may only be used in daytime due to the need for constant position lights and night, is very nice. They arent in sync, but thats OK. The biggest benefits to me are the low power usage and reliability replacing the bulbs.

William C Verified Purchase

NAVSTROBE SEXTANT AIRCRAFT NAVIGATION SYSTEM 40W

February 15, 2022

Very easy to install and works excellent ... its a good bang for the bug o)

Heintje W Verified Purchase

NAVSTROBE SEXTANT AIRCRAFT NAVIGATION SYSTEM 40W

February 7, 2022

I have been a customer of this company from the start. their products produced and the customer serve offered is A++++++

David C
October 1, 2021

Easy install and works well. Good value.

Steve C Verified Purchase

NAVSTROBE SEXTANT AIRCRAFT NAVIGATION SYSTEM 40W

September 13, 2021

Overall, a very good product works well. Instructions are very brief and assume you know to push-in before turning the old bulbs to remove (or youll damage them). The strobe took multiple resets to flash all 3 lights first one would flash, then 2, and eventually all three. It would be helpful to have a sample logbook writeup to use.

John C Verified Purchase

NAVSTROBE SEXTANT AIRCRAFT NAVIGATION SYSTEM 40W

August 10, 2021

great product , fast install works perfect

Lawrence S
December 19, 2019

Easy to install, plug and play.

Miguel A
August 11, 2019

Awesome. Lights fit perfectly and worked great. No issues with the install.

Serloyd L
April 14, 2019

MORE than an awesome product that is easy to install, easy to use... the customer service defines what business should be! 110% to Chris! Thank you for your great light set and support!

Steve A
September 27, 2018

Great product, easy install, lights up the wing tips.

Jennings
August 14, 2018

Definitely a must have! Great addition to my Cessna 120 with NO hassle whatsoever!

Joe S
February 10, 2018

Works excellent. Bulbs are quality and provide an nice range and effect. Not a true strobe, but sure is close. Work well in constant on mode too. I added the Whelen LED beacon, and you can barely even look at that. Now with a polished aluminum C-170A , I will have some visibility up there.

Flying M
December 29, 2017

These lights are great. The simple feature to switch them off and on quickly to put them into flashing mode is wonderful. They are also really bright and draw considerably less current. Due to their long life I run with them during the day in flashing mode for an additional level of safety.

Sophie H
December 25, 2017

Works exactly as described. Tremendous visual improvement over original bulbs.

David
September 9, 2017

This should the very first addition to your old airplane! If I had known about these earlier, I would have bought a set for our Stinson 108-2 a couple years ago. I made a short video on the installation: https://youtu.be/UWLgRFWyrCo

Bret C
August 23, 2017

Fantastic. Very vivid in daytime strobe mode, and more bright in constant mode than old non LED bulb position lights. Easy installation. Strobe mode caused absolutely no noise issues with my intercom or Bendix King GPS/COM panel mount radio.

Brian
July 20, 2017

Purchased these lights about a year and a half ago. They work extremely well increasing my visibility in the busy airspace I typically fly in. However about a month ago I noticed that two of the led arrays on the red bulb were not working. The green and white bulbs continue to function properly. Contacted Aircraft Spruce and they did a replacement on all three since the bulbs are warranted for two years.

Thomas W Verified Purchase

NAVSTROBE SEXTANT AIRCRAFT NAVIGATION SYSTEM 40W

February 1, 2022

Beautiful lights, I wish they could stay on the airplane...but on my Stinson 108-3 they create static in my radios. The brightness is amazing, they get 5 STARS for that...doing research on how to mitigate the static. This apparently is a common complaint with LED in old aircraft

Bob C
September 4, 2017

This is the first poor rating I have given anything. They are very bright but cause static in my radios. Also when I turn them on after parking for a bit they will come on in different modes. One wing will be strobing and the other steady. When I try again they are opposite. I am replacing them today with single function LEDs and I am hoping my static will go away. They are in a 1981 Tomahawk with a KX170b radio. I am going to try a new MX170 if the static doesnt go away.

Joe F
February 14, 2019
  • Previous
  • 1
  • 2
  • Next

Q&A

Submit

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: This Navstrobe sextant kit does not state not FAA approved but the individual bulbs do state the warning. Are they FAA approved?

The Aircraft Sextant Nav System With Constant + Fast Strobe 40w lights Meet FAA AC No: 20-74 and TC Part V - Chapter 523, Subchapter F, 523-VLA.1393 requirements but is not FAA/PMA Approved. FAA Approval paperwork is not available.

Q: Can this Navstrobe 40w sextant kit be legally installed in a certificated aircraft? If so, what paperwork is needed? Would a form 337 be acceptable to the FAA, or would it need a field approval? Would I require a DER report for legal installation? Thank you

This is a replacement bulb kit for NAV and Tail lights, and are made to meet, or exceed, the TSO requirements, but does not have any FAA approval. These lights do have an extra safety flash feature, but does not replace strobe lights on an aircraft, and these can only be in the flash position during daylight flying. NAV lights require a constant light for night flying. NAV light bulbs can be changed by the aircraft owner.

Q: Can the Navstrobe 40w Sextant Kit be used on a 24 volt system?

Yes, these units can be used for systems 10-28V.

Q: At Sun-N-Fun a rep said that the sextant kit came with a notice and a placard to be put at the nav light switch. Is this enough to authorize the installation in a certified aircraft?

This will meet the TSO requirements but it is not technically TSO'd. You will need to check with an A&P to see if this legal for install in your aircraft.

Q: My aircraft does not have strobes. Can these be controlled by the single switch I have to turn on the nav lights?

A single switch is all that is needed to operate these lights. If you turn it on once, the nav lights are in a constant mode, with no flash. If you turn them off and on again after that, it switches to the fast strobe mode, and all the lights will flash as a strobe.

Q: While in flash mode, was is the duration of flashing between pauses. ie 2 seconds of flashing, 1 second pause, 2 seconds flashing, 1 second pause?

3 flashes per second with a 1 second pause per sequence.
