| Type | Part No. | Thread Size | Cotter Pin Size | Price | Buy |
|---|---|---|---|---|---|
| Cad Plated | AN310-3 | 10-32 | AN380-2-2 | $0.90 | |
| Cad Plated | AN310-4 | 1/4-28 | $1.36 | ||
| Cad Plated | AN310-5 | 5/16-24 | $1.15 | ||
| Cad Plated | AN310-6 | 3/8-24 | AN380-3-3 | $1.43 | |
| Cad Plated | AN310-7 | 7/16-20 | $2.65 | ||
| Cad Plated | AN310-8 | 1/2-20 | $4.90 | ||
| Cad Plated | AN310-9 | 9/16-18 | AN380-4-4 | $13.50 | |
| Cad Plated | AN310-10 | 5/8-18 | $2.76 | ||
| Cad Plated | AN310-12 | 3/4-16 | AN380-4-5 | $4.43 | |
| Cad Plated | AN310-16 | 1-25/32 | $21.50 | ||
| Stainless Steel | AN310C3 | 10-32 | AN380-2-2 | $1.36 | |
| Stainless Steel | AN310C4 | 1/4-28 | $1.75 | ||
| Stainless Steel | AN310C5 | 5/16-24 | $1.84 | ||
| Stainless Steel | AN310C6 | 3/8-24 | AN380-3-3 | $2.60 | |
| Stainless Steel | AN310C7 | 7/16-20 | $4.35 | ||
| Stainless Steel | AN310C8 | 1/2-20 | $6.50 |
Overview
|

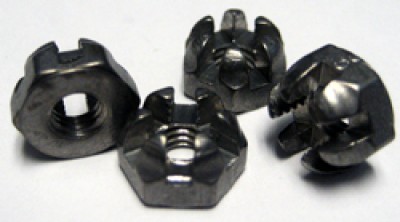

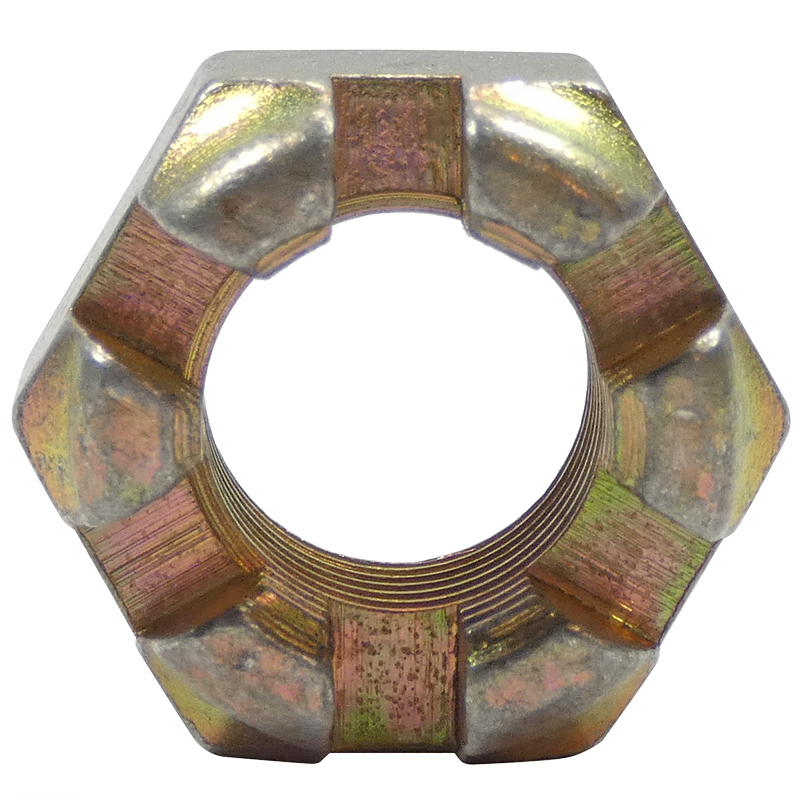

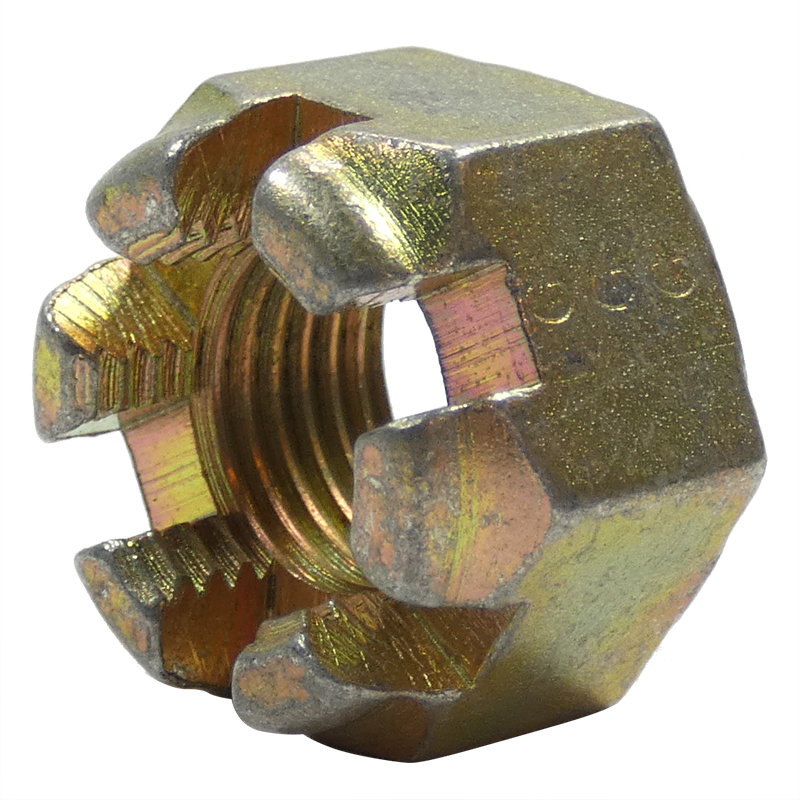

Fabricated from steel and cadmium plated per QQ-P-416A, Type II, Class 3. AN310 castle nuts are used with drilled-shank bolts, clevis bolts, eye bolts and studs. The slots in the nut accommodate a cotter pin for safety purposes. The thinner AN320 castellated shear nut, with half the tensile rating of the AN310 nut, is used with clevis bolts and threaded taper pins which are subject to shearing stress only. Less 20% for quantity 100/Part No. |
Similar Items
Click Here for AN320 Shear NutsReference Chart
Reviews
Its a size AN8 castle nut it will go on the end of the bolt that hold the engine on the mounts its big.
Verified Purchase
NUT, CASTLE AN310-8
Its the nuts for the above bolts what can I say, got to have them
Verified Purchase
NUT, CASTLE AN310-6
Great as always. Fast delivery
Verified Purchase
NUT, CASTLE AN310-3
all good well done
Verified Purchase
NUT, CASTLE AN310-5
Verified Purchase
NUT, CASTLE AN310-3
Verified Purchase
NUT, CASTLE AN310-4
Verified Purchase
NUT, CASTLE AN310-6
Prompt service!
Verified Purchase
NUT, CASTLE AN310-3
OK
Verified Purchase
NUT, CASTLE AN310-4
Verified Purchase
NUT, CASTLE AN310-4
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, they are standard AN UNF thread.
