| Dash No. | Bolt Size | O.D. (in.) |
I.D. (in.) |
Thickness (in.) |
Description | Price Ea. | Price Per 100 |
Buy |
|---|---|---|---|---|---|---|---|---|
| 3 | 3/16 | .875 | .203 | .063 | Cadmium | $0.11 | $8.80 | |
| 3 | 3/16 | .875 | .203 | .063 | Stainless Steel | $0.60 | ||
| 4 | 1/4 | 1.125 | .265 | .063 | Cadmium | $0.19 | $15.20 | |
| C4 | 1/4 | 1.125 | .265 | .063 | Stainless Steel | $0.73 | $58.40 | |
| 5 | 5/16 | 1.375 | .328 | .063 | Cadmium | $0.29 | $23.20 | |
| C5 | 5/16 | 1.375 | .328 | .063 | Stainless Steel | $0.75 | $60.00 | |
| 6 | 3/8 | 1.625 | .390 | .063 | Cadmium | $0.31 | $24.80 | |
| 7 | 7/16 | 1.812 | .453 | .109 | Cadmium | $0.65 | $52.00 | |
| 8 | 1/2 | 2.000 | .515 | .109 | Cadmium | $0.63 | $50.40 | |
| 9 | 9/16 | 2.188 | .578 | .125 | Cadmium | $2.95 | ||
| 10 | 5/8 | 2.375 | .640 | .125 | Cadmium | $0.88 | $70.40 |
Overview

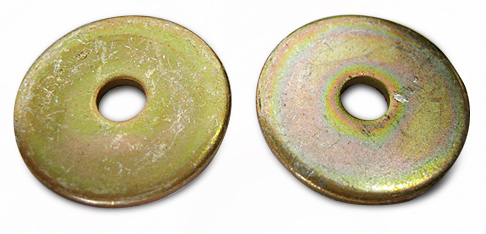

| Manufactured of carbon steel, cadmium plated per QQ-P-416C, Type II, Class 2. They provide a greater bearing area than AN960 washers. Used on wooden structures under both the head of the bolt and the nut to prevent crushing the surface. |
Reference Chart
Reviews
These will hold the engine mount and engine on when I get to hanging the engine.
Verified Purchase
WASHER, FLAT AN970-8
Exactly what I ordered
Verified Purchase
WASHER, FLAT AN970-4
Exactly what I ordered
Verified Purchase
WASHER, FLAT AN970-3
Exactly what I ordered
Verified Purchase
WASHER, FLAT AN970-5
Exactly what I ordered
Verified Purchase
WASHER, FLAT AN970-6
Quality product. Great service from Spruce!
Verified Purchase
WASHER, FLAT AN970-3
there washers they do what washers do
Verified Purchase
WASHER, FLAT AN970-3
Spec quality. Excellent nonbulk price.
Top notch quality. Made to spec.
