| Tube Dia. | Dash No. DG |
Buy DG Clamps |
Dash No. WDG |
Buy WDG Clamps |
|---|---|---|---|---|
| 1/8 | MS21919-DG2 | $0.58 | WDG2 | $0.47 |
| 3/16 | MS21919-DG3 | $0.45 | WDG3 | $0.51 |
| 1/4 | MS21919-DG4 | $0.23 | WDG4 | $0.49 |
| 5/16 | MS21919-DG5 | $0.27 | WDG5 | $0.62 |
| 3/8 | MS21919-DG6 | $0.27 | WDG6 | $0.60 |
| 7/16 | MS21919-DG7 | $0.52 | WDG7 | $0.60 |
| 1/2 | MS21919-DG8 | $0.31 | WDG8 | $0.65 |
| 9/16 | MS21919-DG9 | $0.59 | WDG9 | $0.78 |
| 5/8 | MS21919-DG10 | $0.38 | WDG10 | $0.59 |
| 11/16 | MS21919-DG11 | $0.75 | WDG11 | $0.87 |
| 3/4 | MS21919-DG12 | $0.44 | WDG12 | $0.85 |
| 13/16 | MS21919-DG13 | $0.76 | WDG13 | $0.93 |
| 7/8 | MS21919-DG14 | $0.69 | WDG14 | $0.93 |
| 15/16 | MS21919-DG15 | $1.03 | WDG15 | $0.94 |
| 1 | MS21919-DG16 | $0.51 | WDG16 | $0.92 |
| 1-1/16 | MS21919-DG17 | $1.30 | WDG17 | $1.44 |
| 1-1/8 | MS21919-DG18 | $1.12 | WDG18 | $1.25 |
| 1-3/16 | MS21919-DG19 | $1.59 | WDG19 | $1.44 |
| 1-1/4 | MS21919-DG20 | $1.29 | WDG20 | $1.20 |
| 1-5/16 | MS21919-DG21 | $1.97 | WDG21 | $1.70 |
| 1-3/8 | MS21919-DG22 | $1.58 | WDG22 | $1.35 |
| 1-7/16 | MS21919-DG23 | $2.82 | WDG23 | $1.99 |
| 1-1/2 | MS21919-DG24 | $1.33 | WDG24 | $1.41 |
| 1-9/16 | MS21919-DG25 | $2.90 | WDG25 | $2.40 |
| 1-5/8 | MS21919-DG26 | $1.99 | WDG26 | $2.14 |
| 1-11/16 | MS21919-DG27 | -- | WDG27 | $2.35 |
| 1-3/4 | MS21919-DG28 | $1.50 | WDG28 | $1.95 |
| 1-7/8 | MS21919-DG30 | $1.93 | -- | -- |
| 1-15/16 | MS21919-DG31 | $2.78 | -- | -- |
| 2 | MS21919-DG32 | $1.36 | -- | -- |
| 2-1/16 | MS21919-DG33 | $2.24 | -- | -- |
| 2-1/8 | MS21919-DG34 | $1.90 | WDG34 | $3.95 |
| 2-3/16 | MS21919-DG35 | $4.90 | WDG35 | -- |
| 2-1/4 | MS21919-DG36 | $2.15 | WDG36 | $3.35 |
| 2-3/8 | MS21919-DG38 | $2.75 | -- | -- |
| 2-1/2 | MS21919-DG40 | $1.92 | -- | -- |
| 2-5/8 | MS21919-DG42 | $4.80 | -- | -- |
| 2-3/4 | MS21919-DG44 | $5.35 | -- | -- |
| 2-7/8 | MS21919-DG46 | $5.65 | -- | -- |
| 3 | MS21919-DG48 | $2.53 | WDG48 | $3.50 |
| 3-1/8 | MS21919-DG50 | $4.75 | -- | -- |
- JUMP TO
- Overview
- Documents
- Reviews
- Q&A
- View in Catalog
Overview
|

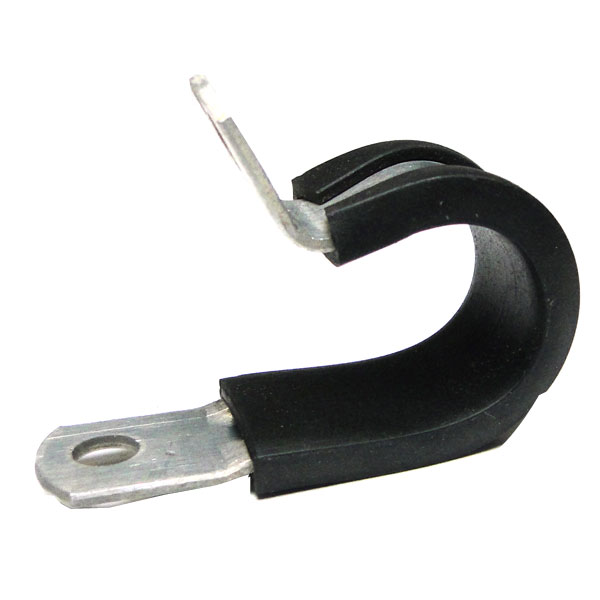

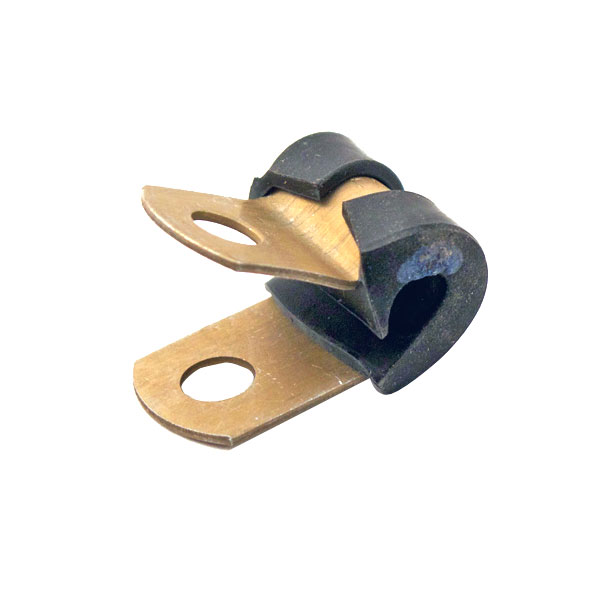

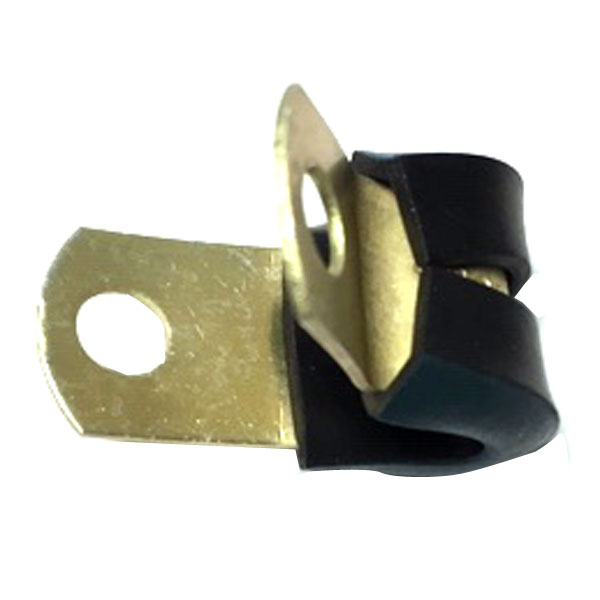

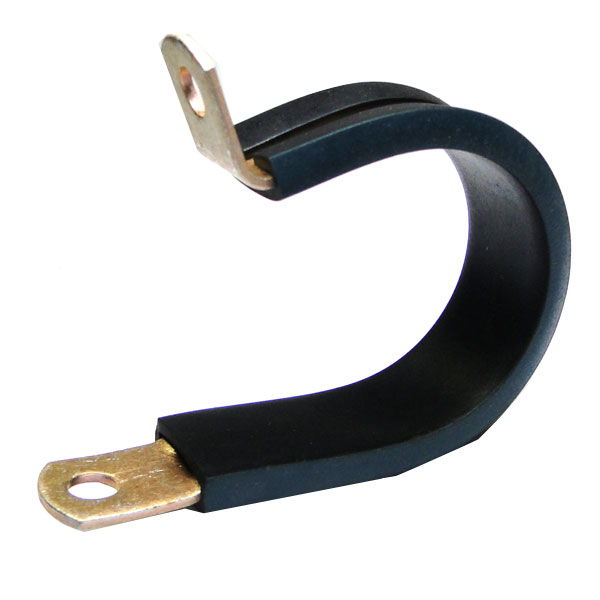

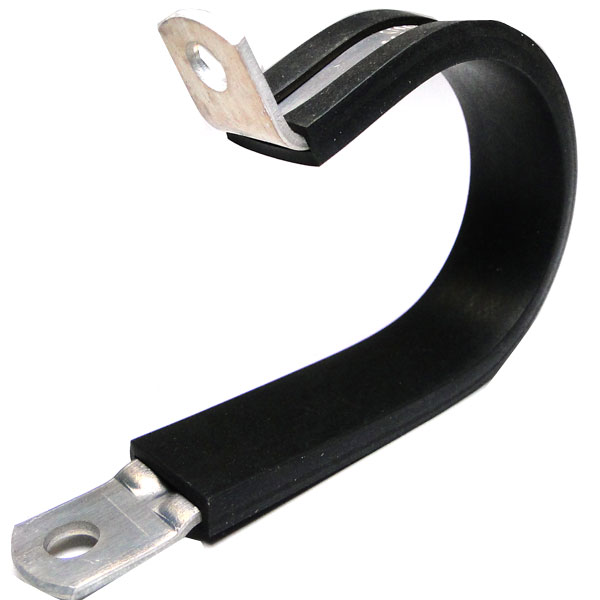

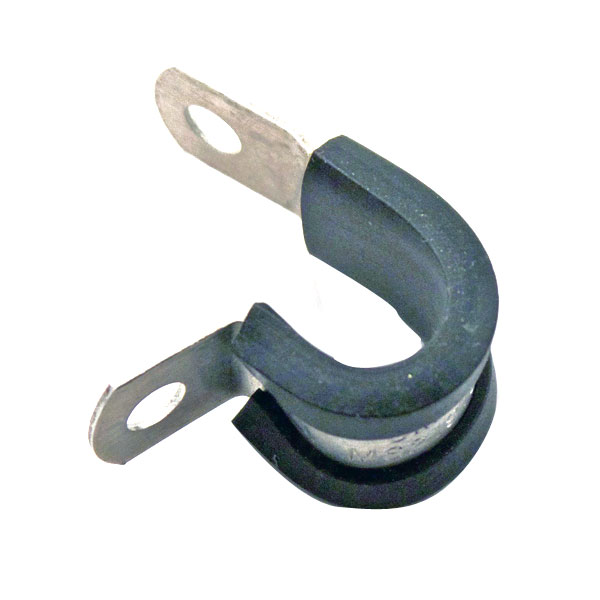

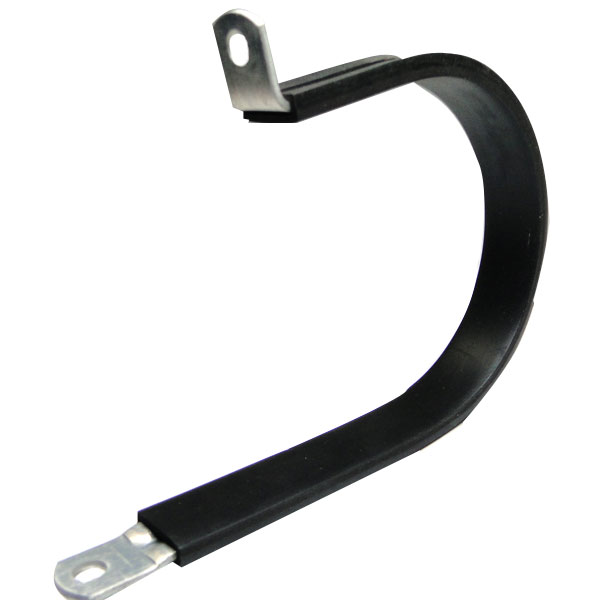

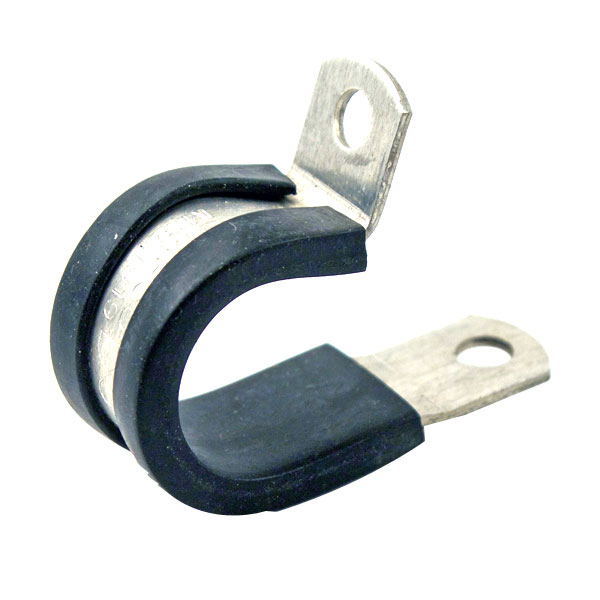

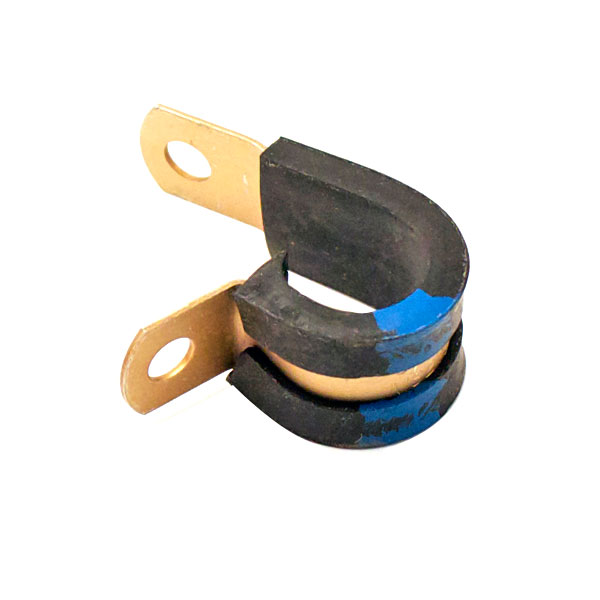

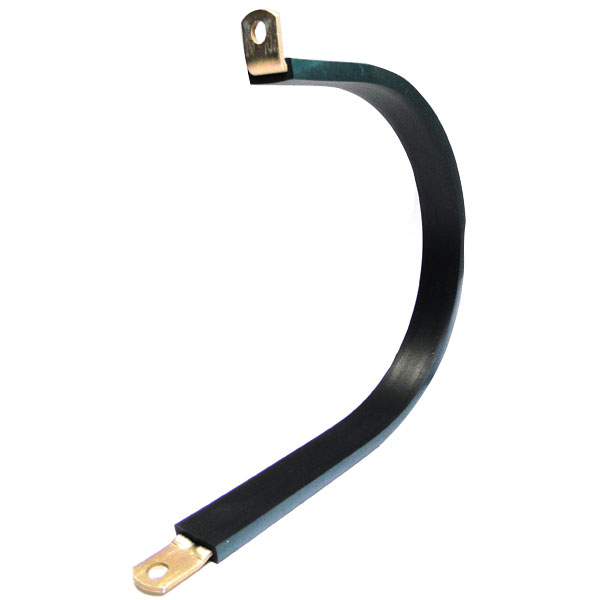

Loop-type cushioned aluminum alloy clamp. Cushion (non-fuel resistant) is bonded to inner surface and edges of clamp. WDG clamps are cushion wedge type. Cushion assures tight fit and eliminates vibration, thus preventing line abrasion. Note: Revision E only applies to WDG clamps. See Tech Data Sheet. |
Documents
- Tech Data Sheet (PDF)
Reviews
Nice product
Verified Purchase
CLAMP MS21919-WDG2
Verified Purchase
CLAMP MS21919-WDG14
As described, fast shipping, Pleased.
Verified Purchase
CLAMP MS21919-WDG16
Verified Purchase
CLAMP MS21919-WDG18
Verified Purchase
CLAMPS MS21919-DG10
Verified Purchase
CLAMP MS21919-WDG9
Better quality than other clamps Ive purchased in the past. VERY satisfied with my decision to purchase from here.
Verified Purchase
CLAMPS MS21919-DG24
I ordered samples for trial. Better than expected and great value, I will be ordering here in the future
Verified Purchase
CLAMPS MS21919-DG4
I ordered samples for trial. Better than expected and great value, I will be ordering here in the future
Verified Purchase
CLAMPS MS21919-DG3
Verified Purchase
CLAMP MS21919-WDG22
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

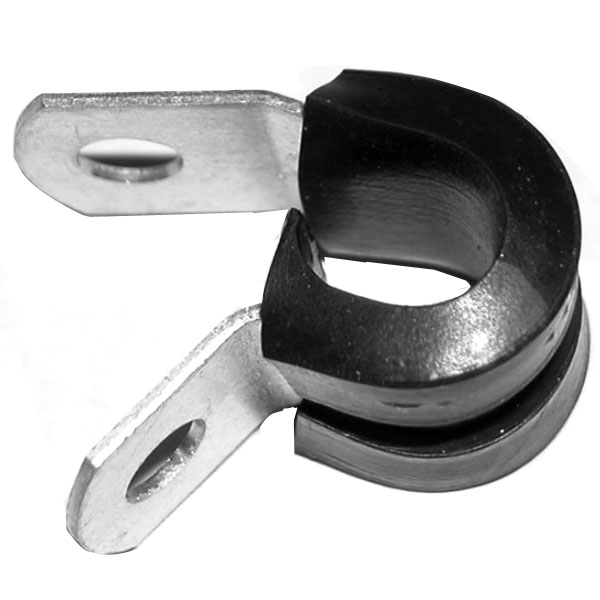

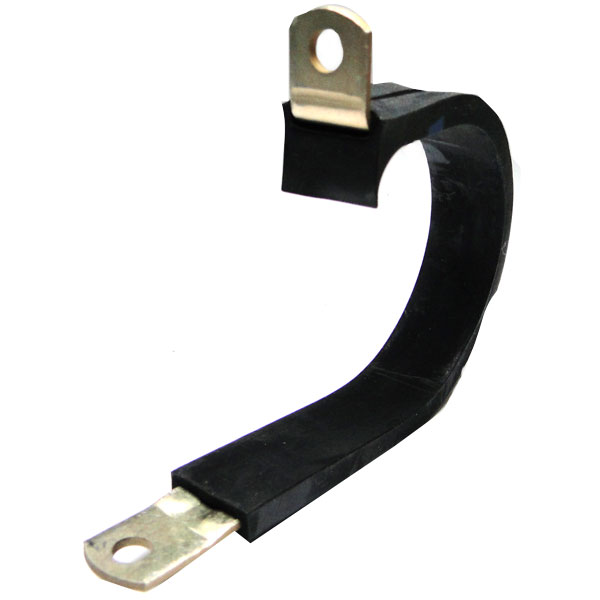

WDG clamps are cushion wedge type clamps. You can see this wedge clearly by looking at the third image (far right) on this web page.
The diameter tolerance of the mounting holes is .199 through .209 which would require a #10 screw or AN3 bolt. All clamps listed on this web page have the same size mounting holes.
Part number 12-02017 is designed to aid in the install of these clamps.
