AN931 Elastic Grommets

23 Reviews 4 Answered Questions

From $0.20 to $9.50

(Hover to zoom | Use mouse wheel for +/-)

Description	Part Number	Price	Buy
ELASTIC GROMMET AN931-2-9	AN931-2-9	$0.62	Quantity
ELASTIC GROMMET AN931-2-16	AN931-2-16	$1.25	Quantity
ELASTIC GROMMET AN931-3-5	AN931-3-5	$0.23	Quantity
ELASTIC GROMMET AN931-3-9	AN931-3-9	$0.86	Quantity
ELASTIC GROMMET AN931-4-7	AN931-4-7	$0.20	Quantity
ELASTIC GROMMET AN931-4-12	AN931-4-12	$0.88	Quantity
ELASTIC GROMMET AN931-4-16	AN931-4-16	$0.80	Quantity
ELASTIC GROMMET AN931-5-9	AN931-5-9	$0.58	Quantity
ELASTIC GROMMET ALT MS35489-10	AN931-5-12	$1.46	Quantity
ELASTIC GROMMET AN931-6-10	AN931-6-10	$0.50	Quantity
ELASTIC GROMMET ALT MS35489-12	AN931-6-16	$0.49	Quantity
ELASTIC GROMMET AN931-7-11	AN931-7-11	$0.80	Quantity
ELASTIC GROMMET AN931-8-13	AN931-8-13	$0.42	Quantity
ELASTIC GROMMET AN931-8-20	AN931-8-20	$0.48	Quantity
ELASTIC GROMMET AN931-9-13	AN931-9-13	$0.49	Quantity
ELASTIC GROMMET AN931-10-14	AN931-10-14	$0.99	Quantity
ELASTIC GROMMET AN931-10-20	AN931-10-20	$1.65	Quantity
ELASTIC GROMMET AN931-11-16	AN931-11-16	$0.74	Quantity
ELASTIC GROMMET AN931-12-17	AN931-12-17	$0.66	Quantity
ELASTIC GROMMET AN931-12-20	AN931-12-20	$1.53	Quantity
ELASTIC GROMMET AN931-12-23	AN931-12-23	$5.35	Quantity
ELASTIC GROMMET AN931-14-20	AN931-14-20	$1.26	Quantity
ELASTIC GROMMET MS35489-23	AN931-16-22	$1.16	Quantity
ELASTIC GROMMET MS35489-24	AN931-16-30	$5.35	Quantity
ELASTIC GROMMET AN931-20-38	AN931-20-38	$9.50	Quantity

Subtotal $0.00

Add to Wishlist

JUMP TO

Overview

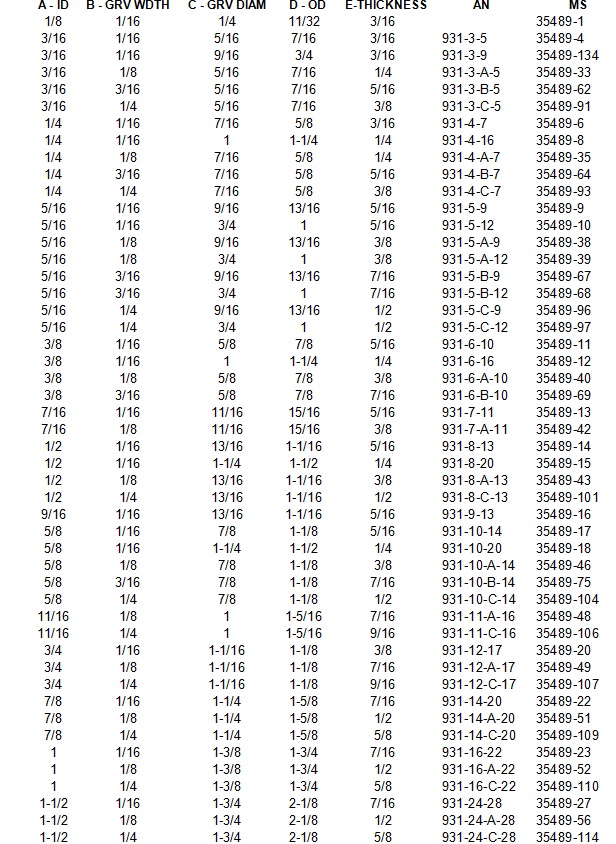

**Note: All sizes in chart are in inches**

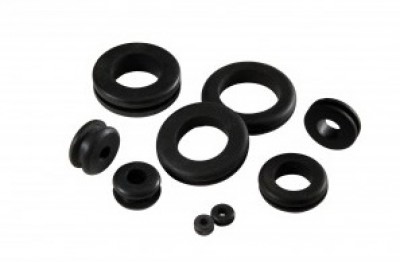

Flexible grommets, made of black synthetic rubber to specification MIL-G-3036. Resistant to hot oil & coolant. Used to protect tubing, wiring and control cables where they pass through bulkheads & firewalls.

Customers Also Viewed
Frequently Purchased With

Reviews

Submit a Review

Nice product

Aeropro

Verified Purchase

ELASTIC GROMMET ALT MS35489-12

February 21, 2022

Sylvain D

Verified Purchase

ELASTIC GROMMET AN931-6-10

January 1, 2022

Product Quality very good

John M

Verified Purchase

ELASTIC GROMMET AN931-4-7

December 28, 2021

John O

Verified Purchase

ELASTIC GROMMET AN931-4-7

December 28, 2021

John O

Verified Purchase

ELASTIC GROMMET AN931-3-5

December 28, 2021

Does a great job in protecting spark plug wires.

Lynn N

Verified Purchase

ELASTIC GROMMET MS35489-23

October 16, 2021

Great price, just what I needed

Dennis H

Verified Purchase

ELASTIC GROMMET AN931-5-9

September 23, 2021

Great product.

John J

Verified Purchase

ELASTIC GROMMET AN931-8-13

June 30, 2021

These grommets were absolutely a perfect fit. It was really helpful to have the table of dimensions to get just the right size! Great to know about this feature for future use.

Eileen B

October 26, 2020

This was actually the 2nd order I had shipped. The first order was not received. It was lost during shipping. Please call 305-780-3902 so we can get the 1st order delivered or refunded. Thanks

Dale H

August 22, 2020

Correct part and cure date for my purpose. Bonanza Brake Piston O Rings.

Edward H

April 23, 2020

Perfect!

William L

April 19, 2020

High quality rubber grommets

Al A

March 23, 2020

Good quality grommets.

Lewis M

October 24, 2019

I was very pleasantly surprised, not just with the order, but Connie at the order desk contacted me to advise that shipping by courier would have been 3 times the price of my small order. She agreed to ship it by Canada Post and it arrived two days later! Very impressed!

Michael A

May 14, 2019

Grommets exactly what I ordered.

Robert M

May 3, 2019

This is exactly what was needed to replace worn grommet in my carburetor heat butterfly valve.

Walt

March 14, 2019

better than I expected. Works great

Gwen

March 15, 2018

Great products! Keep up the good work!!

Andy

January 6, 2018

I have tried grommets from other non aviation suppliers. The extra firmness of these AN931 grommets compared to the mil spec of the other supplier gives me more confidence that this grommet will better protect things like fuel lines from vibration and chaffing.

Brooks C

September 15, 2017

931-4-16 were exactly the same size as the grommets needed to be replaced on the C182 for the ignition leads for the lower cylinders. I had to cut them like the originals were but it was time to replace them and they were brittle and falling apart, wish they made these in silicon they would last forever.

Jaffe L

September 7, 2017

Good quality of rubber material & finishing

Ricardo V

April 3, 2017

The machine screw was correct. Apparently, I ordered the wrong grommet and you shipped a different I.D. dimension than that part number. I wasnt going to throw any rocks, but you asked. You are a great resource.

Tom B

April 19, 2018

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: It would be really helpful if you could list the groove width (panel thickness) of these grommets.

Thank you for bringing this to our attention. We have since added it to our chart.

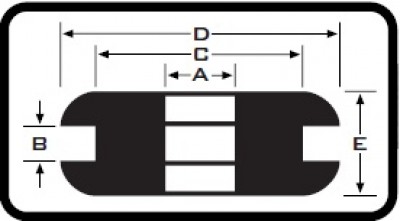

Q: Is there a drawing that available for the dimensions of the AN931 elastic grommets? For example, what does hole size mean?

We have added the drawing as a reference above the chart. It shows the letters that correspond to the different dimensions in the chart. Please review the updated web page for clarification.

Q: Are these AN931 grommets made of Silicone Rubber?

Yes, they are made of synthetic and silicone rubber.

Q: Is the price per piece indicated? How many pieces are in the package?

These are sold individually.
