Murphy Rebel

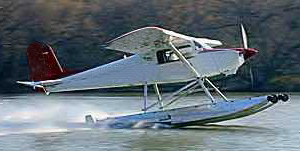

The Murphy Rebel is an all-metal, 3 seat, high wing aircraft constructed using semi-monocoupe construction techniques. Built for strength and longevity, the Rebel is designed to endure tough bush plane-like conditions with low maintenance costs. Designed by Darryl Murphy, the Rebel was designed to accommodate a variety of powerplants including the Rotax 912, Lycoming 0-235 and Lycoming 0-320. The Rebel is easily stored or trailered due to its removable wings and folding tailfeathers. The cabin is a comfortable 44" wide and provides a large wrap around instrument panel, skylights, and large doors. Pre-aligned punched holes make eliminate the need for jigs & special tools, making the Rebel a simple aircraft to build. The Rebel is at home on floats and skis as on standard wheels. We are a prime supplier of materials and components used in Rebel kits.



Specifications:
  • Kit Price w/o Engine: ~$24,739
  • Plans Price: N/A
  • Number of Seats: 3
  • Building Materials: F,M
  • Building Time: ~1000 HRS
  • Standard Engine: LYC. 320/160 HP
  • Horsepower: 80-160
  • Wing Span: 30 Ft.
  • Wing Area: 150 Sq. Ft.
  • Empty Weight: 950 Lbs.
  • Gross Weight: 1650 Lbs.
  • Takeoff Distance: 300 Ft.
  • Landing Distance: 400 Ft.
  • Cruise Speed: 120 MPH
  • Top Speed: 151 MPH
  • Fuel Capacity: 44 Gal.
  • Range: 733 Miles



  • For further information contact
    Murphy Aircraft Mfg. Ltd,
    22 Baronwood Ct.,
    Brampton, ON L6V 3H6
    (905) 457-5238 9am - 10pm 7 days
    Email: Kits@PattersonAeroSales.com
    Website: http://www.PattersonAeroSales.com
