Garmin Experimental G3X EFIS / EMS / GPS System

From $40.00 to $3985.00
Worksheet Steps Garmin # Description Part No. Price Buy
1. Select Display010-01765-00G3X Touch - GDU 470 7" Portrait Display
11-14969
$3085.00 Add to cart for current price
Quantity
--010-01056-00G3X Touch - GDU 450 7" Landscape Display
10-05740
$3085.00 Add to cart for current price
Quantity
--010-01057-00G3X Touch - GDU 460 10.6" Display
11-12642
$3985.00 Add to cart for current price
Quantity
2. Select Standard or High Performance LRU Kit:K10-00016-13High Performance LRU Kit with GSU 25D, GMU 22, GTP 59, Config Module
11-17313
$2599.00
Quantity
K10-00016-14Standard LRU Kit with GSU 25C, GMU 11, GTP 59, Config Module
11-17305
$1500.00 Add to cart for current price
Quantity
3. Select Required G3x System Connector Kits:K10-00181-00GSU 25 Connector Kit Required
11-11433
$85.00 Add to cart for current price
Quantity
--011-04349-90GMU 11 Install Kit
Required for Standard LRU Kit
11-15066
$47.80
Quantity
--011-00871-10GMU 22 Install Kit
Required for High Performance LRU Kit
11-12213
$90.75
Quantity
--010-12150-00GDU 460/465 10" Install Kit
11-12646
$67.00 Add to cart for current price
Quantity
--010-12150-01GDU 450/455 7" Install Kit
10-05860
$67.00 Add to cart for current price
Quantity
--010-12150-02GDU 470 7" Install Kit
11-15037
$67.00 Add to cart for current price
Quantity
4a. Select Engine/Airframe Sensor Kit:K00-00512-004 Cylinder Lyc/Cont Sensor Kit
11-09469
$999.00 Add to cart for current price
Quantity
--K00-00513-006 Cylinder Lyc/Cont Sensor Kit
11-09474
$1250.00
Quantity
--K00-00514-00Rotax 912 Sensor Kit
11-09476
$299.00 Add to cart for current price
Quantity
4b. Select Optional G3X Sensors494-30004-02Fuel Pressure (Injected), 50 PSIG, 1/8-27 NPT
11-09477
$145.95
Quantity
--494-30004-03Fuel Pressure (Carbureted) / Coolant Pressure,
11-09478
$179.00
Quantity
--494-10001-00Fuel Flow, 1/4" Female NPT
11-09479
$255.95
Quantity
--494-50005-00RPM, Hall Effect, Slick magneto
11-09480
$127.80
Quantity
--494-50005-01RPM, Hall Effect, Bendix magneto
11-09481
$119.95
Quantity
--909-D0000-00Ammeter, Shunt, +/-50 mV, 100 amps
11-09482
$44.55
Quantity
--494-70002-00TIT, Type K thermocouple, 7/16-20, bayonet
11-09483
$86.95
Quantity
--494-70005-00Carb Temp, RTD, 1/4-28
11-09484
$75.00
Quantity
--010-01788-00GMU 11 Supplemental Magnetometer
Up to 2 can be installed
11-15077
$350.00 Add to cart for current price
Quantity
--010-01042-00GEA 24 Engine/Airframe Module
11-11452
$650.00 Add to cart for current price
Quantity
--011-02886-00GEA 24 Engine Module Connector Kit
11-11434
$147.75
Quantity
6. Add Autopilot

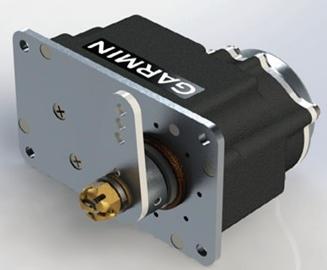

010-01068-00GSA 28 Autopilot Servo
Order 1 per axis
11-11450
$800.00 Add to cart for current price
Quantity
Connector & Install Kits011-02950-000GSA 28 Connector Kit (One Per Servo)
11-12171
$49.50
Quantity
--011-02950-01GSA 28 Connector Kit Right Angle (One Per Servo)
11-14918
$135.00 Add to cart for current price
Quantity
--011-02952-00GSA 28 Servo Install Kit Without Mount Bracket
11-11437
$61.75
Quantity
--011-02952-01GSA 28 Servo Install Kit With Mount Bracket
11-11438
$97.00 Add to cart for current price
Quantity
RV Aircraft Servo Packages011-02952-10GSA 28 Servo Install Kit for RV 6 Roll
11-11440
$125.75
Quantity
--011-02952-11GSA 28 Servo Install Kit for RV 4 & 8 Pitch
11-11441
$92.00 Add to cart for current price
Quantity
--011-02952-12GSA 28 Servo Install Kit for RV 7, 8 & 10 Roll
11-11442
$92.00
Quantity
--011-02952-13GSA 28 Servo Install Kit for RV 9 Roll
11-11443
$92.00 Add to cart for current price
Quantity
--011-02952-14GSA 28 Servo Install Kit for RV 6, 7 & 9 Pitch
11-11444
$92.00 Add to cart for current price
Quantity
--011-02952-15GSA 28 Servo Install Kit for RV 10 Pitch
11-11445
$93.75
Quantity
--011-02952-16GSA 28 Servo Install Kit for RV 10 Yaw Damper
10-05845
$561.00 Add to cart for current price
Quantity
Autopilot Control Panel

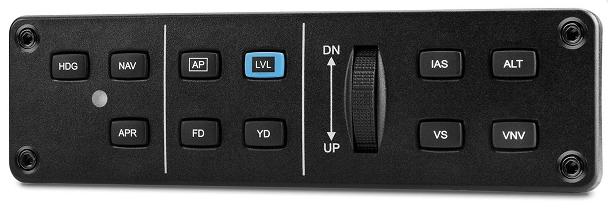

010-01169-00GMC 305 Autopilot Control Panel
11-11446
$850.00
Quantity
010-01169-20GMC 305 Autopilot Control Panel with Yaw Damp
10-05726
$850.00
Quantity
--010-01595-00GMC 307 Autopilot Control Panel with Yaw Damp
11-13821
$1109.00
Quantity
--010-01595-20GMC 307 Autopilot Control Panel without Yaw Damp
11-13822
$1109.00
Quantity
--010-01946-00GMC 507 Autopilot Control Panel
11-16219
$1099.00 Add to cart for current price
Quantity
--011-01824-01GMC 507 Connector Kit
11-16220
$45.50
Quantity
--010-12034-00GMC 305 Install Kit
11-11447
$50.00 Add to cart for current price
Quantity
G5 Electronic Flight Instrument010-01485-00G5 Unit Only
11-14312
$1340.00 Add to cart for current price
Quantity
--010-12493-00G5 Battery Pack
11-14314
$219.00
Quantity
--010-11825-20GDL 39R Connector Kit
10-05693
$44.95
Quantity

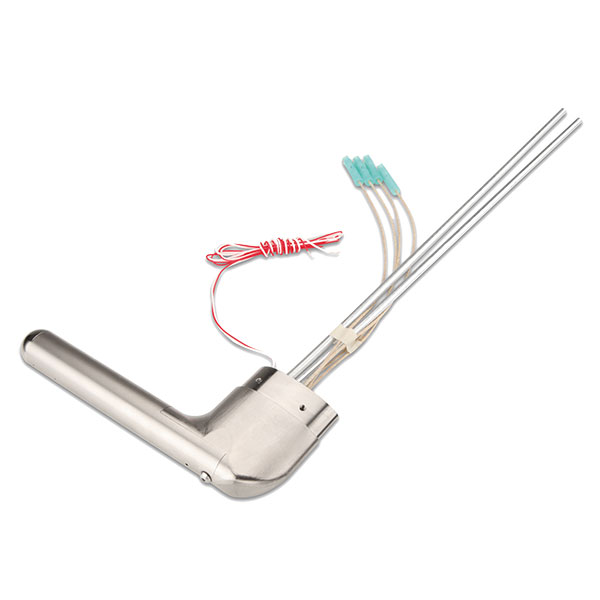

Pitot Tube & AOA010-01074-00GAP 26 Unheated Pitot Tube
11-11448
$249.00 Add to cart for current price
Quantity
010-01074-10GAP 26 Heated Unregulated Pitot Tube 14V
11-11449
$349.00 Add to cart for current price
Quantity
010-01074-20GAP 26 Heated & Regulated Pitot Tube 14V
11-12973
$499.00 Add to cart for current price
Quantity
--010-01074-60GAP 26 Heated and Unregulated Pitot Tube 28V
11-14963
$449.00 Add to cart for current price
Quantity
--010-01287-00GI 260 Angle of Attack Indicator
11-12648
$266.95
Quantity
Electronic Controller

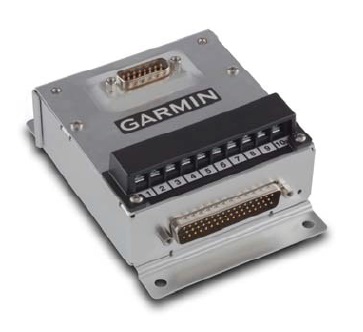

010-01525-00GAD 27 Electronic Controller
10-05937
$529.00 Add to cart for current price
Quantity
--011-03877-00GAD 27 Connector Kit
10-05938
$115.00 Add to cart for current price
Quantity
ARINC Interface
010-01172-00GAD 29 ARINC Interface
11-11454
$475.00 Add to cart for current price
Quantity
--011-03271-00GAD 29 Connector Kit
11-11455
$66.75
Quantity
Audio Panels010-01318-01GMA 245 Bluetooth Audio Panel
11-14308
$1425.00 Add to cart for current price
Quantity
010-01471-01GMA 245 Remote Mount Bluetooth Audio Panel
11-14309
$1259.00
Quantity
GPS Receiver010-01546-00Garmin G3X GPS 20A ADS-B System
11-13819
$845.00
Quantity
--011-03914-00GPS 20A Connector Kit
11-13820
$40.00 Add to cart for current price
Quantity
Transponder010-01757-01Remote Mount GTX 45R Mode S Transponder
11-14574
$3599.00 Add to cart for current price
Quantity
--010-01756-01Remote Mount GTX 35R Mode S Transponder
11-14575
$2299.00 Add to cart for current price
Quantity
Comm Radios010-01087-01GTR 200 COM Radio
11-11999
$1199.00
Quantity
--115-01878-00GTR 200 Installation Rack
11-12001
$101.75
Quantity
--010-01076-01GTR 20 Remote Comm Radio for G3X Touch Only
11-12647
$995.00
Quantity
Select Antenna(s)

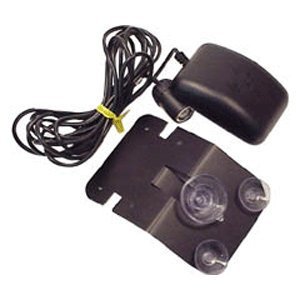

010-10052-04GA 26C GPS (remote dash mount) Antenna Kit
11-00051
$78.95
Quantity
--010-10040-01GA 56 GPS Antenna (TSO
11-18756
$402.00
Quantity
--010-11370-10GA 57X GPS/SM (external mount) Antenna
11-09467
$252.95
Quantity
--010-10600-01GA55 XM Antenna
11-13387
$326.00
Quantity
--011-01788-00GMU 22/24 Lancair IV/IV-P Mounting Kit
11-13580
$48.50
Quantity
--011-01779-01GMU 22/24 Universal Mounting Kit
11-13581
$84.99
Quantity
--011-01796-00GMU 22 Mounting Bracket
11-13501
$48.80
Quantity
Subtotal $0.00
Add to Wishlist

Overview

The G3X is a large glass flight display system designed for installation in experimental amateur-built and light sport aircraft (LSA). The non-certified G3X Touch system offers pilots easy-to-read, easy-to-use, high-resolution 10.6-inch flight displays with split-screen functionality and a host of advanced interface options – all at a great price.

Large Touch Display
On the exterior, G3X Touch offers a sleek and clean appearance with a large 10.6-inch display. Since G3X Touch is scalable and easily configurable, pilots can choose to install up to three G3X Touch displays in their panel. Incorporating the latest in infrared touchscreen technology, the display offers a resilient, high-resolution, sunlight readable screen that demonstrates Garmin’s industry-leading experience in integrated flight decks. The touchscreen provides a simple user-interface that is easy to learn and offers efficient access to information. The bezel contains four dedicated buttons and two rotary knobs, which provide increased efficiency in performing common in-flight functions like direct-to navigation, setting altitude, changing heading or radio tuning.

Enhanced Functionality and Situational Awareness
The G3X Touch display provides pilots with an intuitive split-screen mode with the option to view PFD, MFD, and engine information on a single display. Synthetic vision (SVX™) is a standard feature on G3X Touch, which provides a rich, three-dimensional depiction of terrain, obstacles, water features, the runway environment, and more. G3X Touch conveniently displays VFR Sectionals and IFR Enroute Charts, which provide pertinent information in-flight while on an IFR or VFR flight plan. A version of G3X Touch also includes SiriusXM Aviation Weather and Radio capability, which allows pilots to receive NEXRAD, METARs, TAFs, TFRs, winds aloft, and more. SiriusXM Satellite Radio is also accessible via G3X Touch; both weather and audio capabilities require purchase of a subscription from SiriusXM Satellite Radio Inc. The new GDL 39R (remotely mounted ADS-B receiver) is also compatible with G3X Touch and offers pilots an excellent solution to display ADS-B traffic and subscription-free weather.

Seamless Integration and Familiar Interface
G3X Touch interfaces with Garmin’s industry-leading experimental autopilot, which gives pilots autopilot control through the touchscreen interface, while still supporting the optional, stand-alone GMC 305 autopilot control panel. G3X Touch gives pilots access to all autopilot modes from the touchscreen display, including indicated airspeed hold, yaw damper, flight director, and level modes. Touchscreen control functionality for the remote-mounted GTX 23 ES transponder is provided on the display, as well. Team X has incorporated a user-interface that is similar to other Garmin touchscreen aviation products, so pilots can easily find pertinent in-flight information quickly.

New Comm Radio and AOA Indicator Support
Tucked away behind G3X Touch, pilots can choose to integrate the new GTR 20 remote transceiver for added functionality. The GTR 20 offers pilots an ideal solution for a clear, powerful communication radio and intercom, which is controlled from the G3X Touch display. The 10-watt radio provides advanced features such as 3D audio, stereo intercom, stereo music input, alert inputs, and standby frequency monitoring. Even more, frequency identification is available on the G3X Touch display so identifiers such as “KOSH ATIS” are displayed as the pilot tunes the frequency. For pilots who have incorporated the GTR 200 panel mount comm radio into their panel, full touchscreen control is also available through G3X Touch. The combination of the remote comm transceiver and transponder provide pilots the option to fly VFR with everything they need controlled from the display of G3X Touch, saving space and offering an immaculate panel.

Additionally, the new G3X Touch can display angle of attack (AOA) information when installed with the GSU 25 ADAHRS and GAP 26 probe. The new optional GI 260 angle of attack indicator provides pilots with a visualized indication of AOA using a combination of colors and chevrons and may be mounted on the glare shield in the primary field of view. The AOA system offers progressive audible and visual alerts as the aircraft nears the critical angle of attack. In conjunction with G3X Touch, the GI 260 is designed to give pilots a quick, at-a-glance understanding of AOA during critical phases of flight and offers audible alerts during high-workload situations.


  • Accessories
  • Customers Also Viewed
  • Frequently Purchased With
  • Related Items

Reviews

So far, we purchased 2 dead ones.

Exact A Verified Purchase

GARMIN G5 BACK UP BATTERY

February 22, 2022

Everything was as expected, nicely put together kit.

Albert H Verified Purchase

GARMIN GSA 28 SERVO INSTALL KIT FOR RV 7 8 10 ROLL

January 18, 2022

Comprehensive kit, arrived quickly.

Albert H Verified Purchase

GARMIN GSA 28 SERVO INSTALL KIT FOR RV 6 7 9 PITCH

January 18, 2022

Great radio

Mike M Verified Purchase

GARMIN GTR 200 COM RADIO 10 WATT 25 KHZ SPACING NON TSO

January 12, 2022

I ordered this to replace a 14 year old Garmin SL40 that was functioning as Com 2 but had fading reception and an inop volume control. The only connections the GTR200 needed were the external antenna, power, ground, and five wires going to the audio panel. Fabricating a new wiring harness was made relatively simple by the fact that during the original build, I had positioned in-line connectors (DB9 or DB25 computer connectors, to be exact) in between all avionics in the stack and all other units. So it was only necessary to terminate the new wiring in a DB9 connector that matched the pinouts of the original wiring. A bonus of having the new unit is that it has a 10 watt transmitter vs. 8 watts for the old one, and a much more informative digital display e.g., when monitoring two frequencies at once, it shows which one is receiving a transmission at the moment. A minor annoyance was that Garmin radio trays apparently now are just a smidge wider than they used to be. The standard 6.25 inch width has now become 6.30” – just enough that new trays won’t slide easily into stacks of older radios without some creativity with a flat file to make the opening a bit wider. Luckily the height of the GTR200 is the same as the SL40 (even though the Garmin specs say it isn’t!) so neither the GNS480 navigator above the radio or the GTX330ES transponder below it had to be moved. Oh, and the new unit works great. : )

Daniel M Verified Purchase

GARMIN GTR 200 COM RADIO 10 WATT 25 KHZ SPACING NON TSO

December 14, 2021

Terry J Verified Purchase

GARMIN GSA 28 SERVO INSTALL KIT GENERIC WITH MOUNT BRACKET

November 3, 2021

Terry J Verified Purchase

GARMIN G3X GSA 28 AND GDL 50R 51R 52R CONNECTOR KIT

November 3, 2021

Works alright

Getpart L Verified Purchase

GARMIN GTR 200 COM RADIO 10 WATT 25 KHZ SPACING NON TSO

September 30, 2021

Cannot leave review of this product as I have not installed it yet.

Bill S Verified Purchase

GARMIN GMU 11 CONNECTOR KIT

September 29, 2021

The GSA-28 is a good servo, I hope. But I was not lucky - she did not work a single day and broke down. The PFD started showing the message Servo Hardware Fault a year after installation, although I did not turn on the autopilot even once. And one more thing: GSA-28s have insufficient power, for example, the Pitch-servo cannot raise the elevator of stabilizer on my Cessna-182 when its on th ground. I have ordered one new and got it during 10 days - its very good!

Andrey P Verified Purchase

GARMIN G3X GSA 28 SERVO

September 14, 2021

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: I have a G3X installed and I know that the G3X touch and the plain G3X system cannot comunicate but is there a way that I can use my plain GDU as just a GPS and then I connect the touch up with my excisting module's?

You would have to run the GDU 370/375 completely separate with its own GPS signal and rewire the G3X touch to be the main display with your existing LRUs.

Q: For the Garmin G3X EFIS, do I have to buy the Connector Kits if I buy the Harness kit?

Yes, you would still need to purchase the connector kit in addition to the harness.

Q: What additional connector kits and/or harnesses are needed with K10-00016-40 (single display, no EiS, no XM).

You would need the GDU 460/465 Install Kit (11-12646), GSU 25 Connector Kit (11-11433), and the GMU 22 Install Kit (11-12213).

Q: What wiring is included in the G3X VFR Harness EFIS/EMS 4CYL CON/LYC?

For the VFR harness all of the components including the engine leads are included minus connection to an auto pilot and audio panel (which have there own part numbers on our list). When ordering a G3X system, we will send you a worksheet to fill out for your unique setup.

Q: What is included in the G3X VFR EFIS?EMS harness?

As each G3X harness we create is unique, there is a form that you would fill out which will includes the features you want including and pricing.

Q: What is the difference in 11-11433 and 11-15303?

11-11433 is the GSU 25 connector kit by itself. Part # 11-15303 is the GSU 25 connector kit with a custom harness.

Q: This page is for the G3X but the only available items here are G3X Touch. Does that mean that the non touch version is no longer available?

The non-touch screens are no longer available. We only offer the touch screen G3X now.

Q: With the GTR 20 there is a 2 place intercom, I have a 4 place airplane, what I have to do to have intercom with the 2 extra places?

You will need to purchase a GMA 245 audio panel or 245R remote audio panel to support a 4 place aircraft.

Q: Regarding the Garmin G3X EFIS: can you display twin engine data?

Per the manual, yes, the G3x can display twin engine data.

Q: What all is included with the dual 10" screen G3x touch with EIS? Are connector kits included?

Included: (2) 10" GDU 460, ADAHRS GSU 25, Magnetometer GMU 22, GEA 24, Temperature Probe GTP 59, Config Mod, w/sockets, Jackscrew. Connector kits are available but sold separately.
